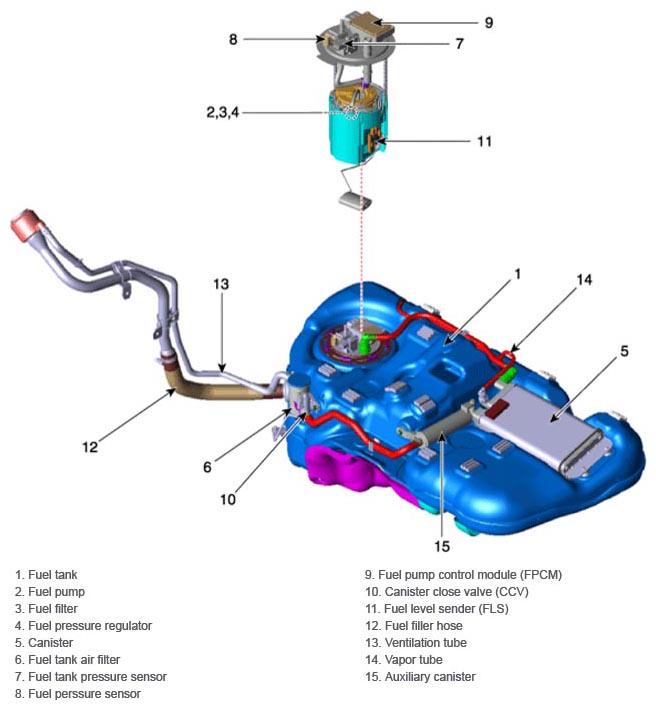

Components Location
 Courtesy of HYUNDAI MOTOR AMERICA
|

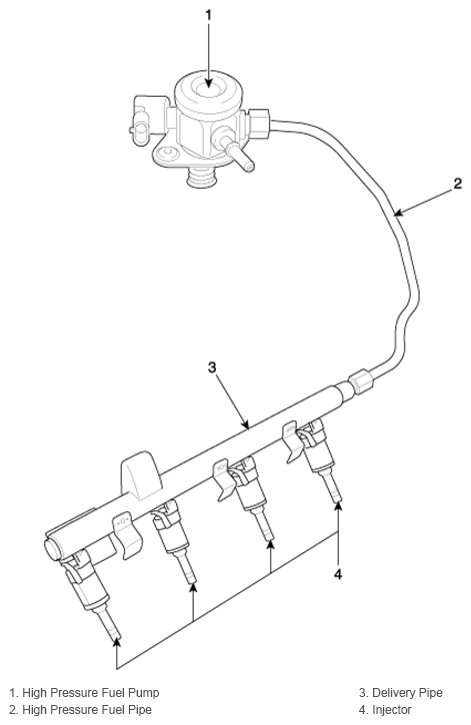

[High Pressure Fuel Line]
 Courtesy of HYUNDAI MOTOR AMERICA
|
WARNING:
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
