Repair Procedures: Removal

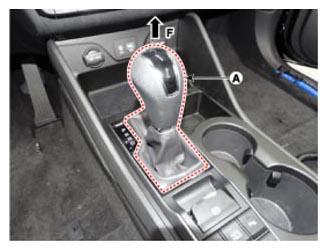

- Pull the knob (A) in the direction of "F" and remove the knob.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

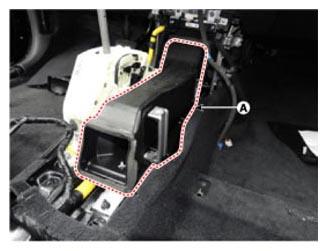

- Remove the air duct (A).

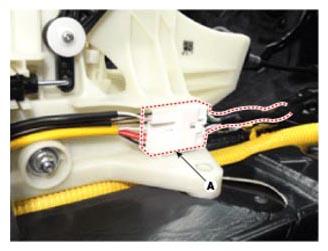

- Disconnect the connector (A) from the shift lever.

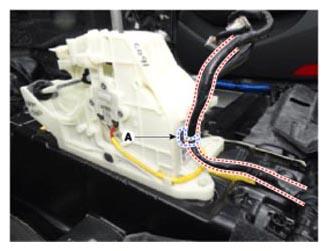

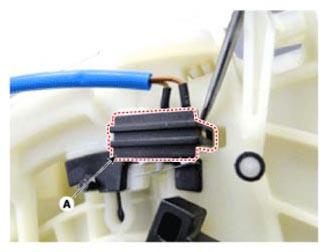

- Disconnect the fixing clip (A) of wiring.

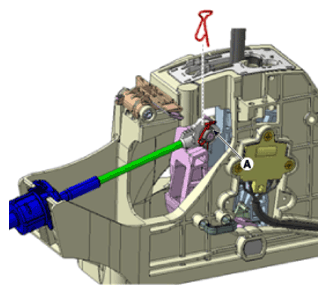

- Remove the snap pin (A).
- Disconnect the control cable.

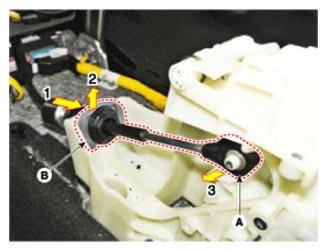

- Disconnect the cable holer (A) from the shift lever.
- Disconnect the cable bracket (B) from the shift lever after pushing the lock.
- Remove the bolts and then shift lever assembly (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Remove the P position switch mounting bracket (A).

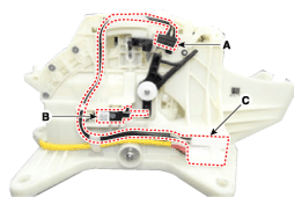

- Disconnect the P position switch (A) and shift lock solenoid (B).
- Disconnect the main connector (C) from the shift lever.
- Disconnect the manual mode switch housing (A).
- P position switch, shift lock solenoid, manual mode switch housing, main connector assembly (A).
- Remove the mounting bracket (A) of terminals from the main connector.
- Remove each terminals (F) of the P position switch (A), shift lock solenoid (B), manual mode switch housing (C) after released lock (E) from the main connector (D).
CAUTION:
- Record the location of the wiring colors before disconnecting the terminals.
NOTE:

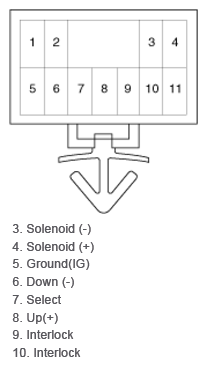

*Connector information
