Components And Components Location: Components

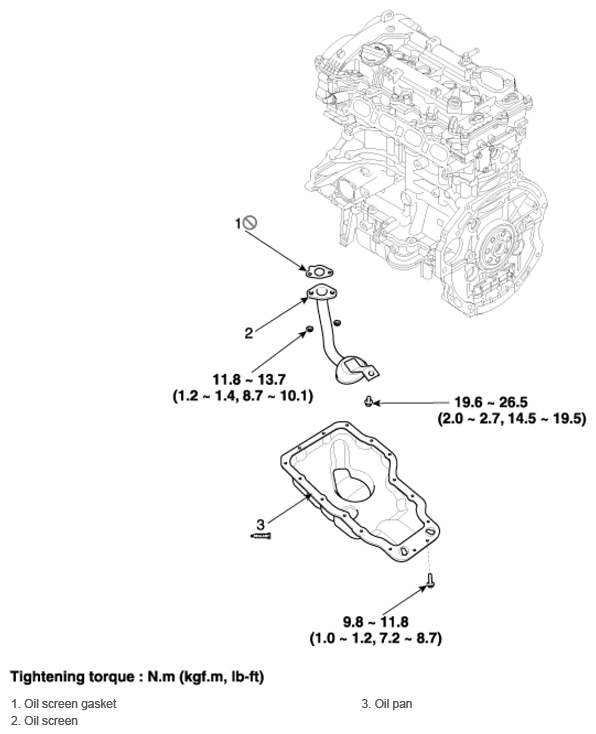

Fig 1: Oil Pan Components With Torque Specification
G13016823Courtesy of HYUNDAI MOTOR AMERICA
