Smart Key Code Saving

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G13054233Courtesy of HYUNDAI MOTOR AMERICA

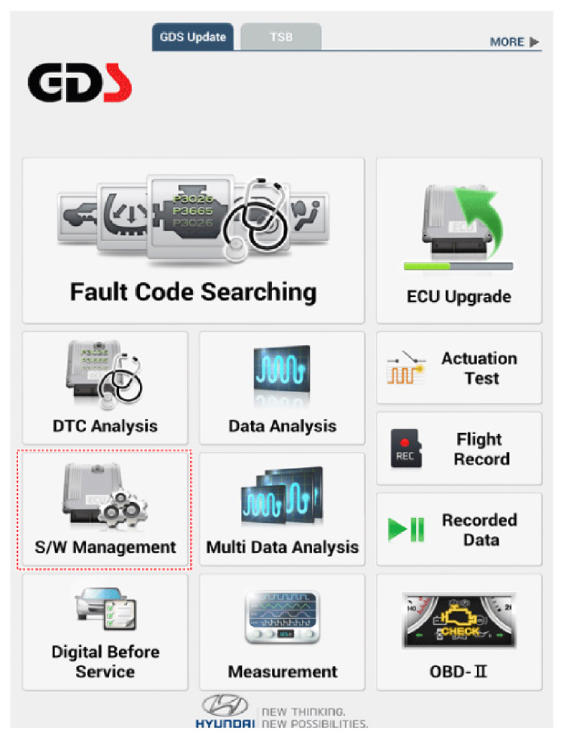

  2. Select the 'S/W Management' and 'Car model'.
    G13054234Courtesy of HYUNDAI MOTOR AMERICA

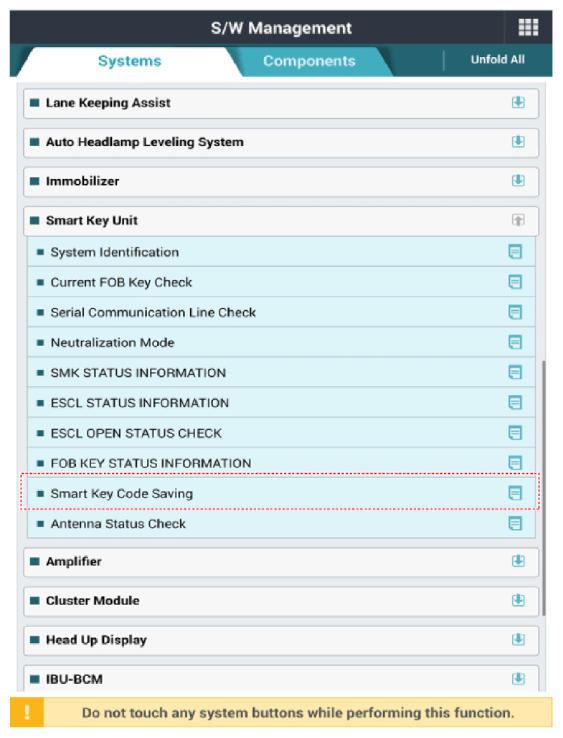

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G13054235Courtesy of HYUNDAI MOTOR AMERICA

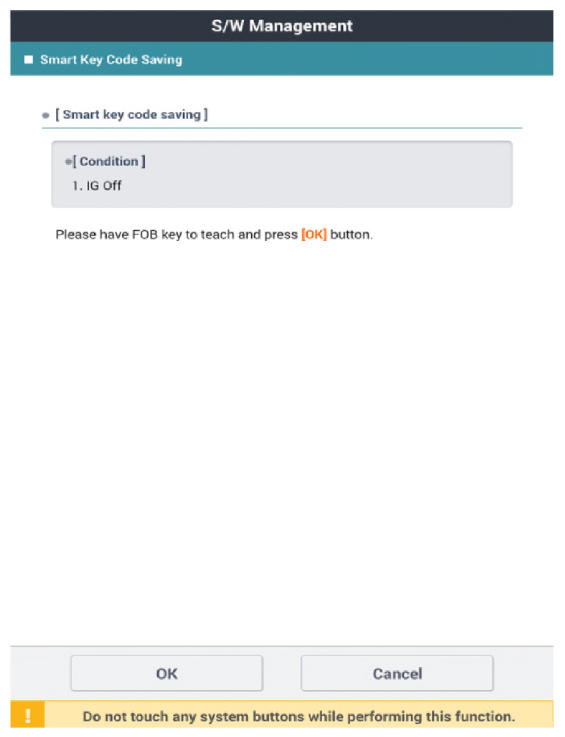

  4. Follow the instructions on the screen.
    G13054236Courtesy of HYUNDAI MOTOR AMERICA
