Components & Components Location: Components

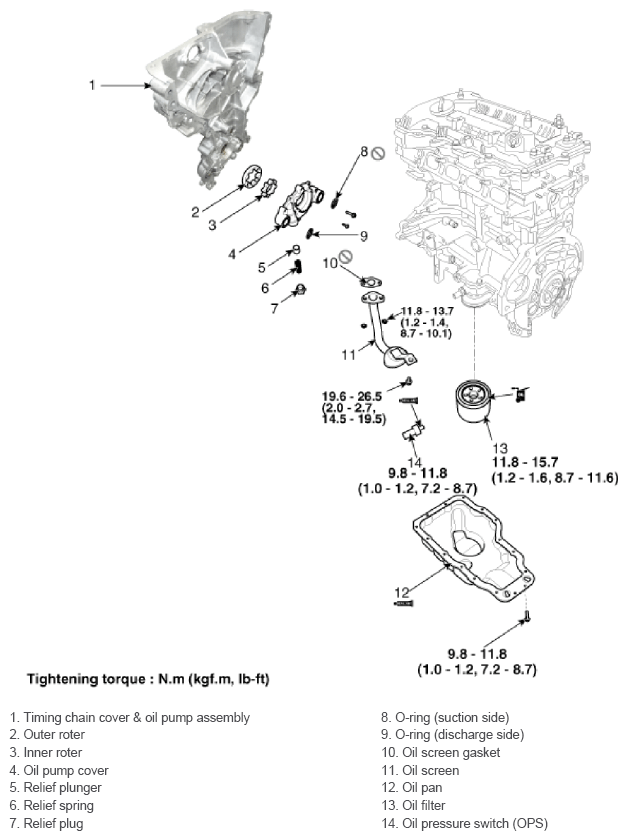

Fig 1: Lubrication System Components Location With Torque Specifications
G13055318Courtesy of HYUNDAI MOTOR AMERICA
