Repair Procedures: Removal
- Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Remove the rear seat cushion. (Refer to Body - "REAR SEAT ASSEMBLY ")

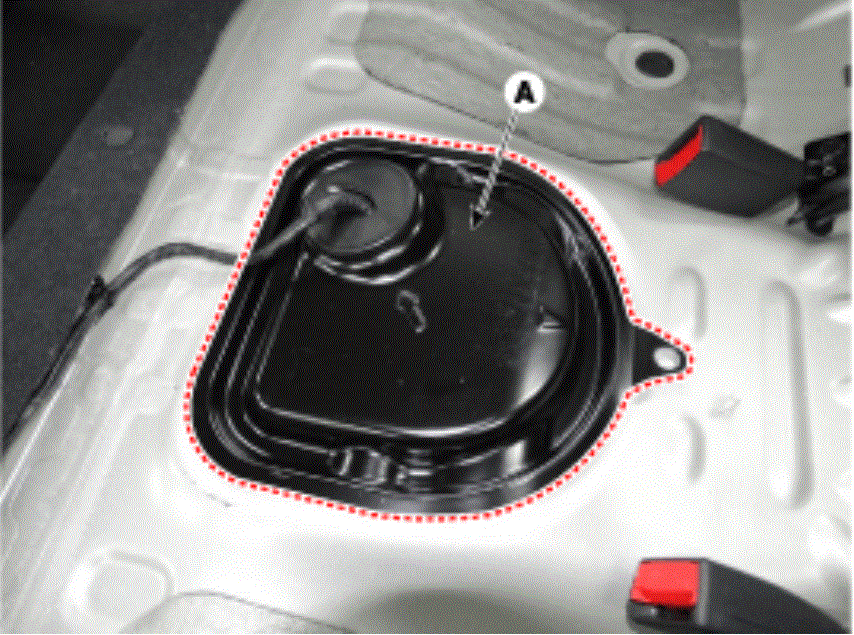

- Remove the fuel pump service cover (A).

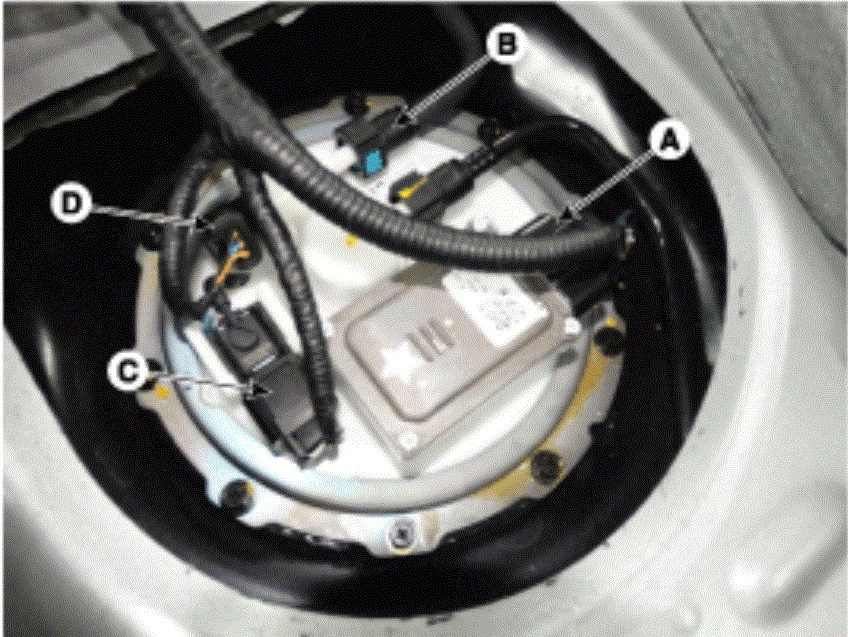

- Disconnect the fuel pump control module connector (A) and the fuel tank pressure sensor connector (C).
- Disconnect the fuel feed tube quick connector (B) and the fuel pressure connector (D).

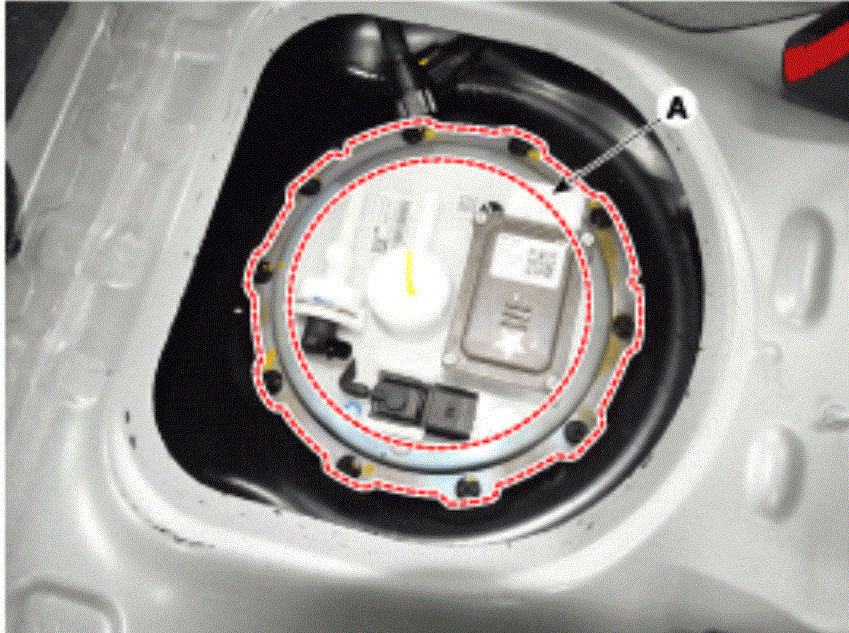

- Remove the fuel pump from the fuel tank after removing the fuel pump plate cover (A).

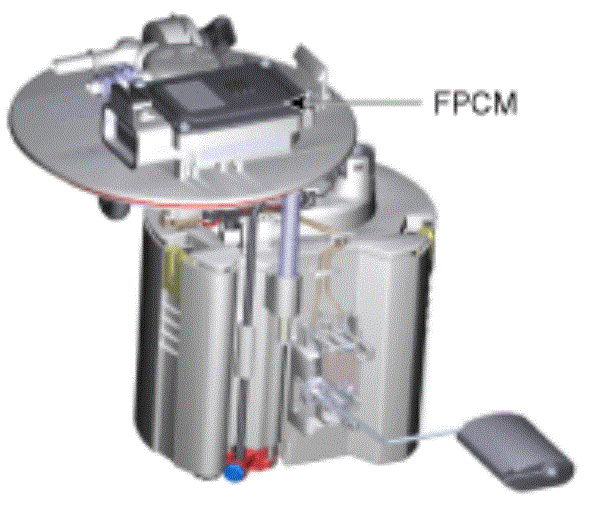

- Remove the fuel pump from the fuel tank.
