| Nominal output |
13.5V, 150A |
| Speed in use |
1, 500 - 18, 000 RPM |
| Voltage regulator |
IC Regulator built in type |
| Regulator Setting Voltage |
External mode |

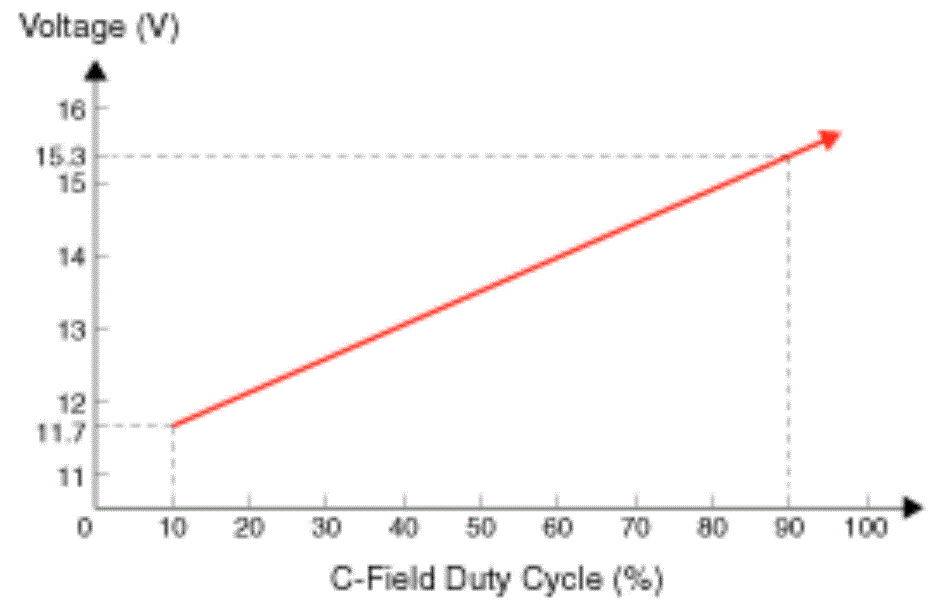

Refer to below graph |
| Internal mode |
14.55 ± 0.3V |
| Temperature Gradient |
External mode |
0 ± 3 mV/°C |
| Internal mode |
-3.5 ± 2 mV/°C |
| Target voltage data (COM) |
Frequency (Hz) |
115 - 500 |
| Signal type |
PWM |
| Voltage level (V) |
High: 3.5 ±0.2 |
| Low: 1.5 ±0.2 |
| Electric load (FR) |
Frequency (Hz) |
250 ± 38 |
| Signal type |
PWM |
| Current limitation from vehicle (mA) |
2.7 - 7.0 |
| Pulley type |
OAD |
