Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System Control Module (SRSCM) And Sensors
>>
Occupant Classification System (OCS)
>>
Components And Components Location
>>
Components
>>
Occupant Classification System (OCS) Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

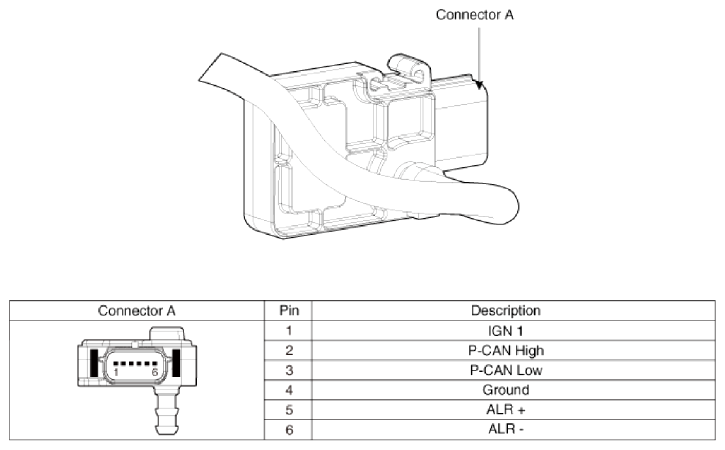

Occupant Classification System (OCS) Unit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
