Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 6) >> DTC P0113-00: Intake Air Temperature Sensor 1 Circuit High Input >> Troubleshooting >> Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

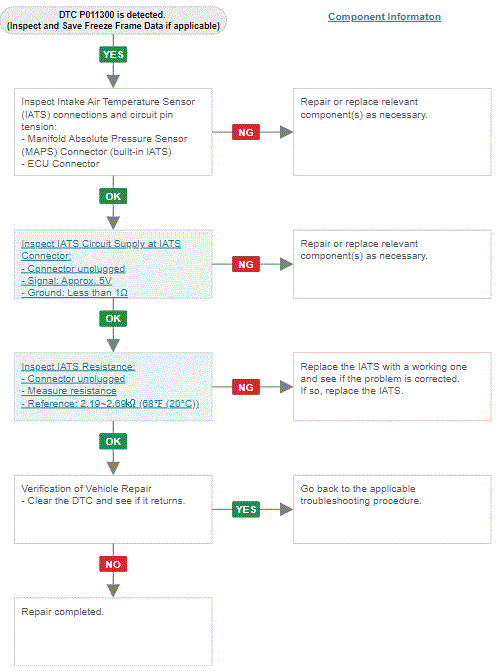

Diagnostic Flowchart

G14703270Courtesy of HYUNDAI MOTOR AMERICA
