Engine Control System Diagnosis (2 Of 6)
>>
DTC P0123-00: Throttle Position Sensor 1 Signal Circuit High Input
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

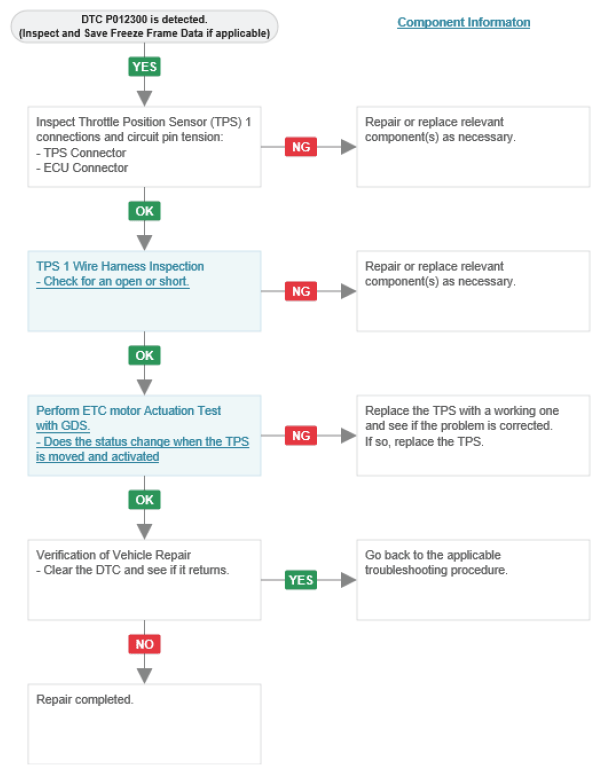

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
