Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad garnish assembly (LH).

    (Refer to MAIN CRASH PAD ASSEMBLY Body - "Main Crash Pad Assembly")

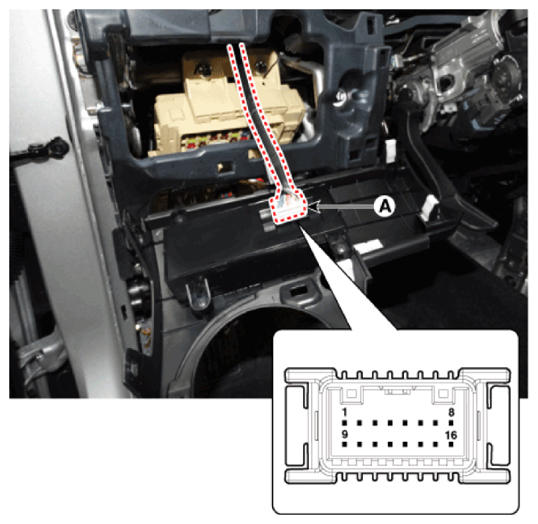

  3. Disconnect the ESP OFF switch connector. (A)
    G14712373Courtesy of HYUNDAI MOTOR AMERICA

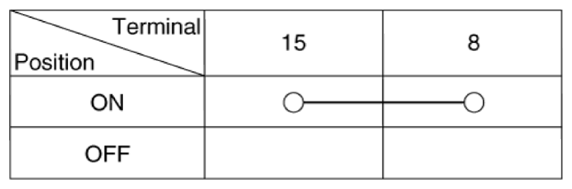

  4. Replace the after check the switch terminal.
G14712374Courtesy of HYUNDAI MOTOR AMERICA
