Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Open the fuel filler door.

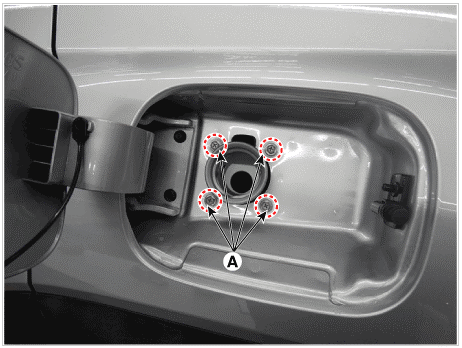

- Remove the filler-neck mounting bolt (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Lift the vehicle.
- Remove the rear-LH wheel, tire, and the inner wheel house.

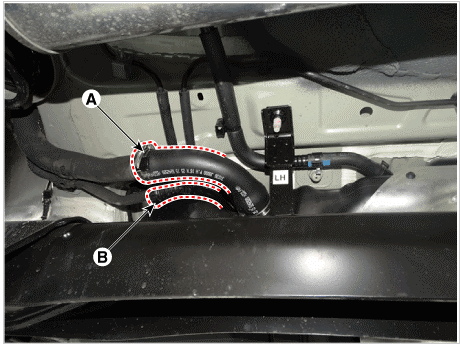

- Disconnect the fuel filler hose (A), the ventilation hose (B).

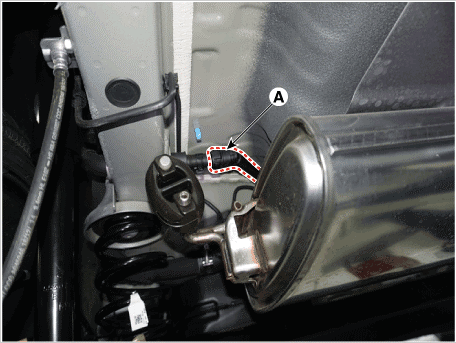

- Disconnect the leveling hose quick-connector (A).

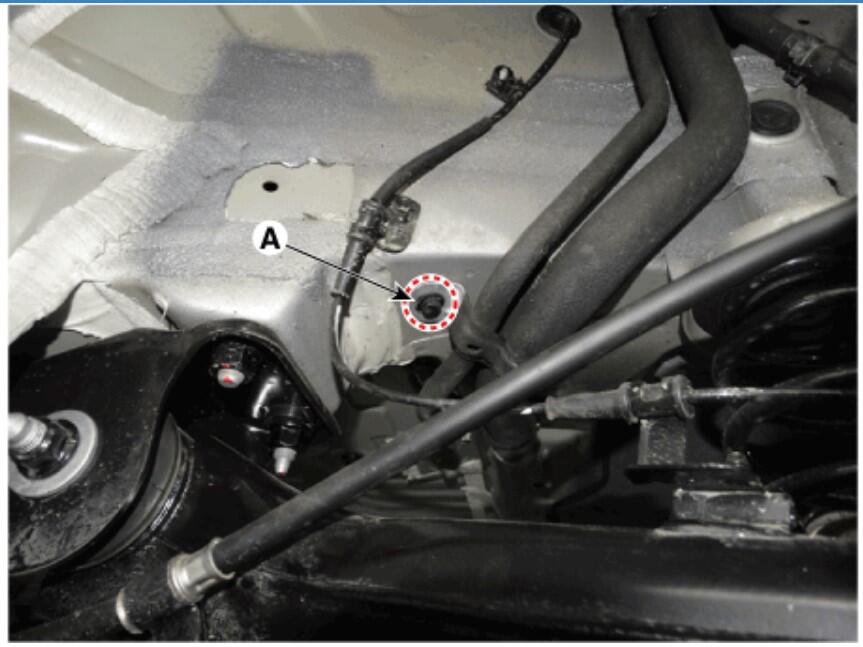

- Remove the filler-neck assembly after loosening the mounting bolt (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
