Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

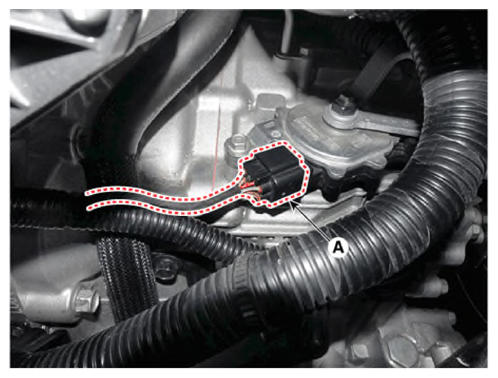

  3. Disconnect the position switch connector (A).
    G14714630Courtesy of HYUNDAI MOTOR AMERICA

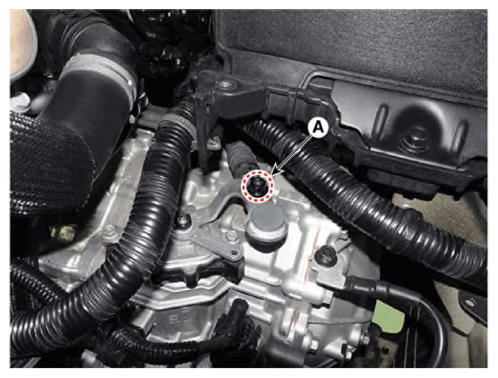

  4. Loosen the nut (A) and then separate the shift cable.
    G14714631Courtesy of HYUNDAI MOTOR AMERICA

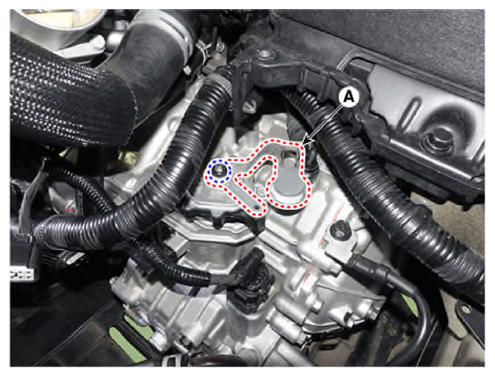

  5. Loosen the nut and then removing the manual control lever (A).
    G14714632Courtesy of HYUNDAI MOTOR AMERICA

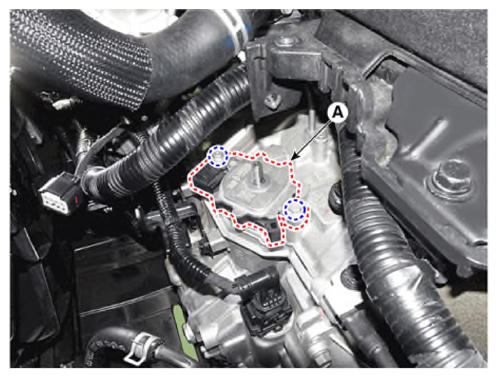

  6. Loosen the bolts and then removing the position switch (A).
    G14714633Courtesy of HYUNDAI MOTOR AMERICA
