Components & Components Location: Components

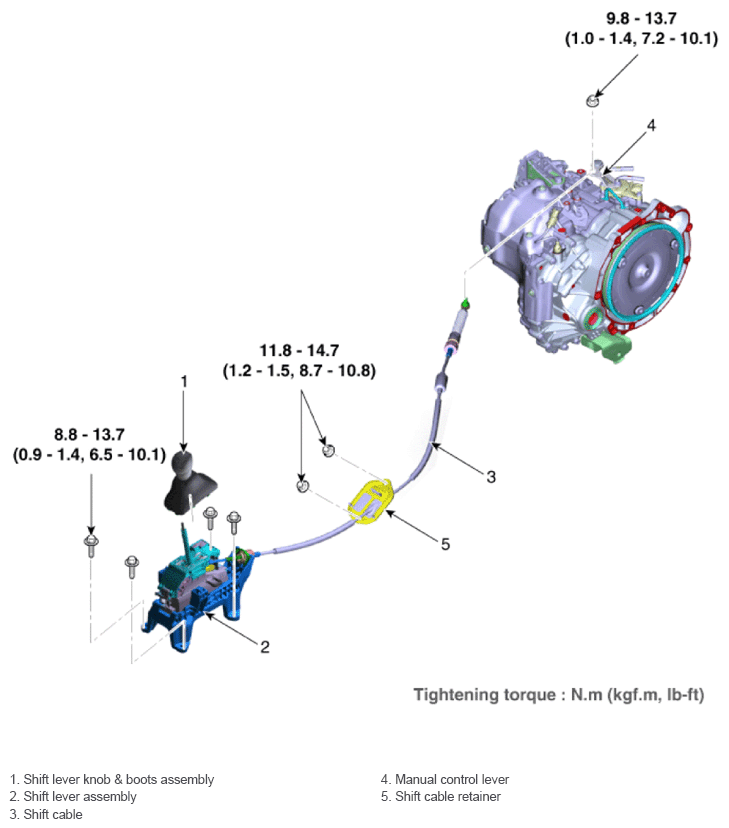

Fig 1: Shift Cable Components Location With Torque Specifications
G14714650Courtesy of HYUNDAI MOTOR AMERICA
