Repair Procedures: Adjustment

  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".
  5. Select "CVVD Intake Adaption".

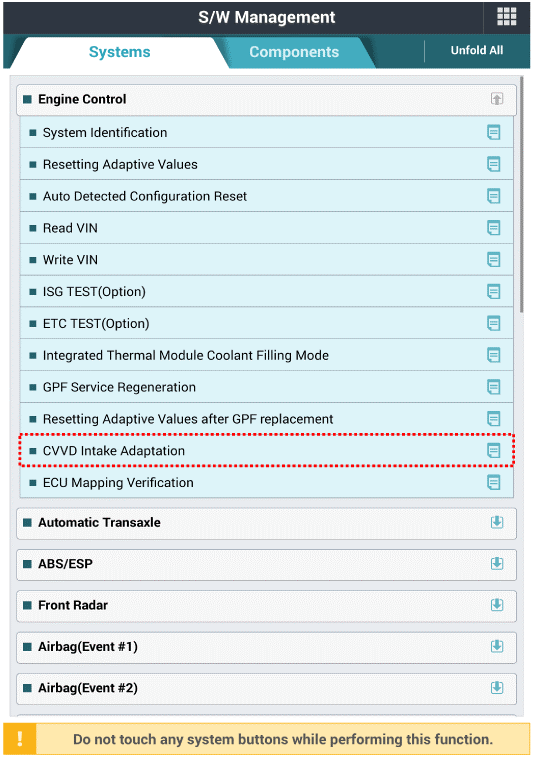

    G16172606Courtesy of HYUNDAI MOTOR AMERICA
  6. Perform the "CVVD Learning". Refer to the diagnostic tool.
    G16172607Courtesy of HYUNDAI MOTOR AMERICA

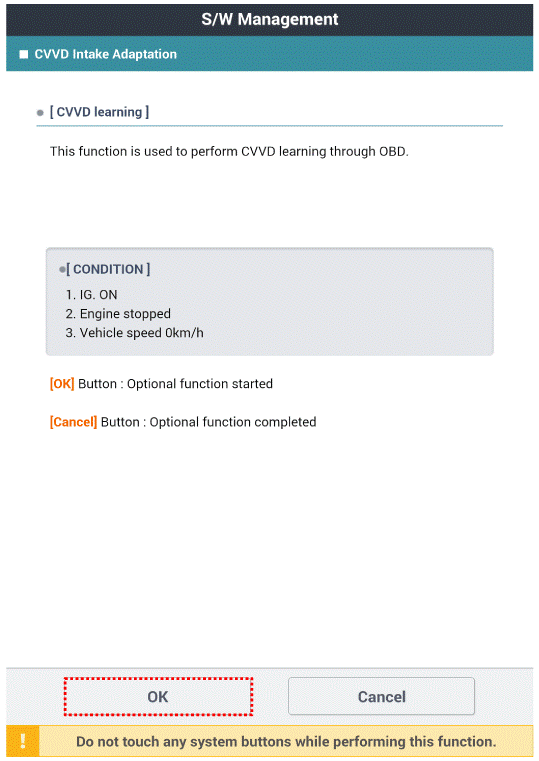

    G16172608Courtesy of HYUNDAI MOTOR AMERICA
