Repair Procedures: Adjustment

  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".
  5. Select "CVVD Intake Adaption".

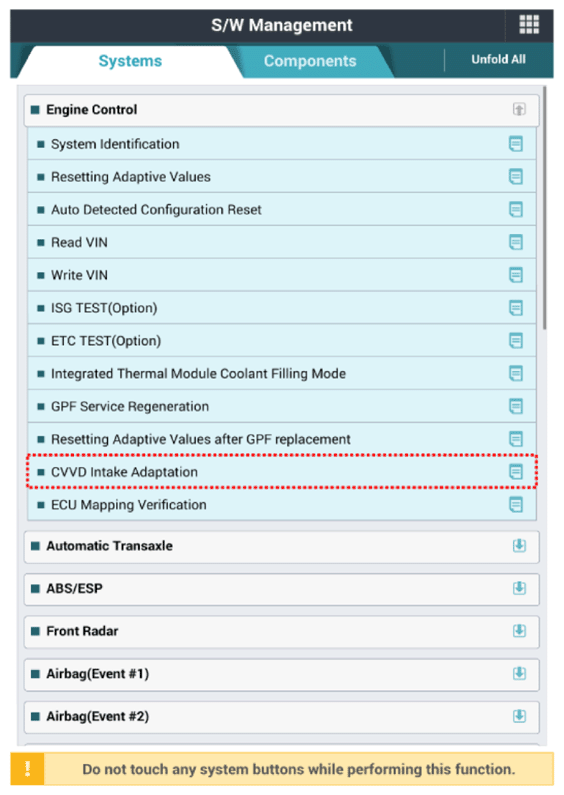

    G14711131Courtesy of HYUNDAI MOTOR AMERICA
  6. Perform the "CVVD Learning" refer to the diagnostic tool.

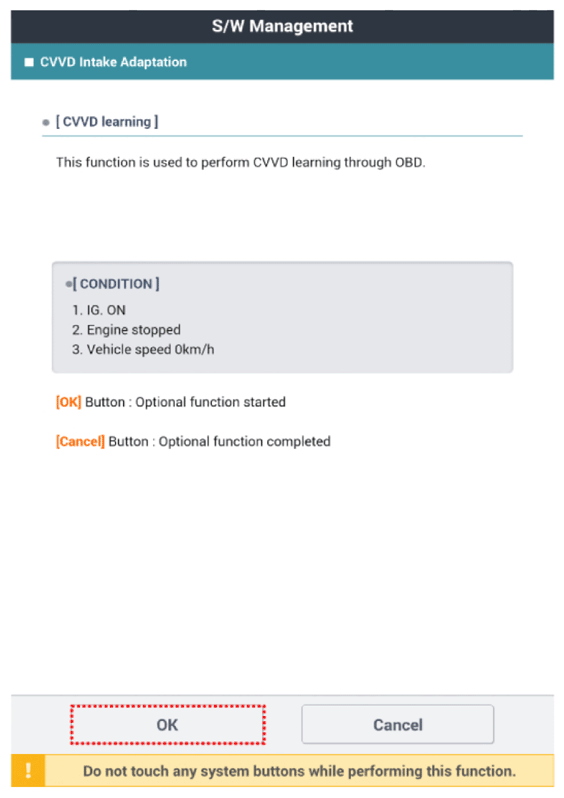

    G14711132Courtesy of HYUNDAI MOTOR AMERICA
    G14711133Courtesy of HYUNDAI MOTOR AMERICA
