Bank 1/Intake

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

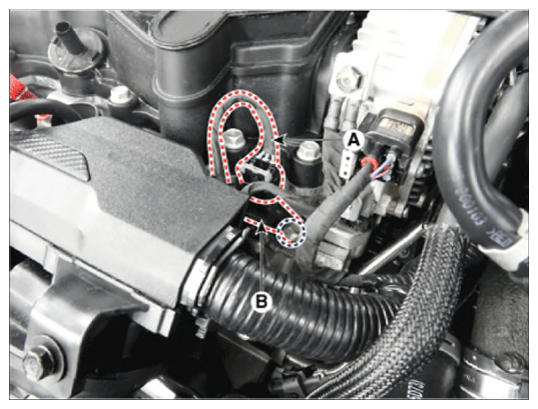

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt, and then remove the sensor (B).

    Tightening Torque:

    9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)

    G14711029Courtesy of HYUNDAI MOTOR AMERICA
