Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

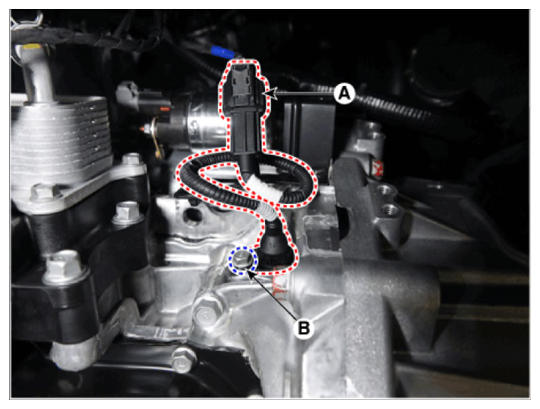

- Disconnect the crankshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the crankshaft position sensor.
Tightening Torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
