Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ")
  3. Remove the intercooner inlet pipe. (Refer to Engine Mechanical System - "INTERCOOLER ")
  4. Disconnect the EWGA connector (A).

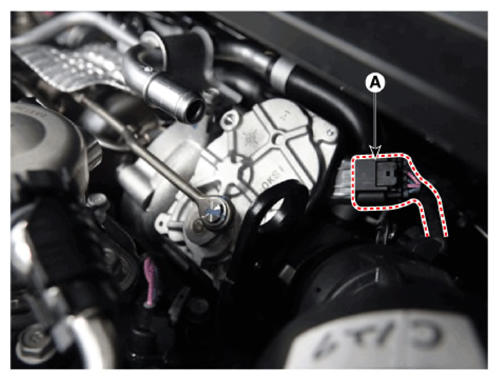

    G14711098Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the shaft link assembly (B) after removing the C-ring (A).

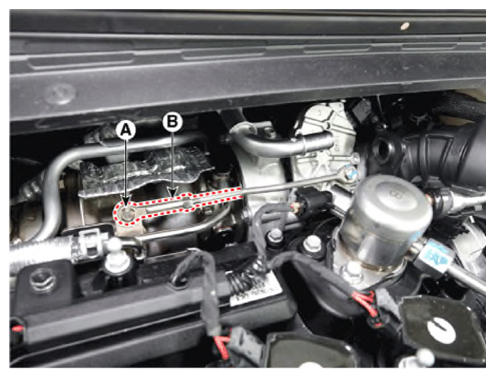

    G14711099Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the EWGA after removing the bolts (A).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

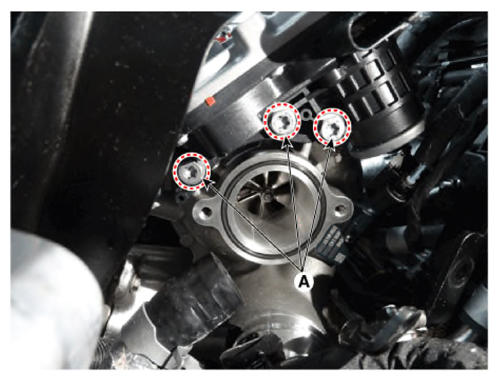

    G14711100Courtesy of HYUNDAI MOTOR AMERICA
