Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

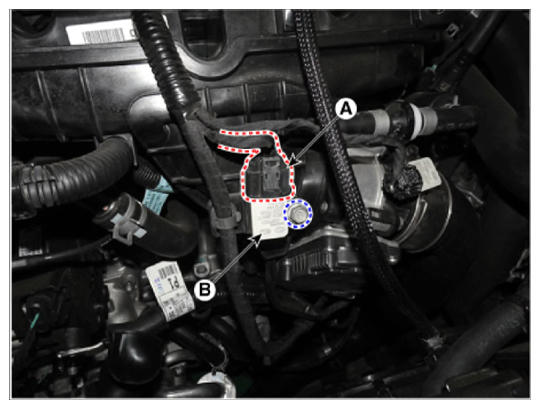

  2. Disconnect the MAPS connector (A).
  3. Remove the MAPS (B) after loosening the bolt.

    Tightening Torque:

    9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)

G14711009Courtesy of HYUNDAI MOTOR AMERICA
