Repair Procedures: Removal

Remove the ignition coil.
(Refer to Engine Electrical System - "IGNITION COIL ")

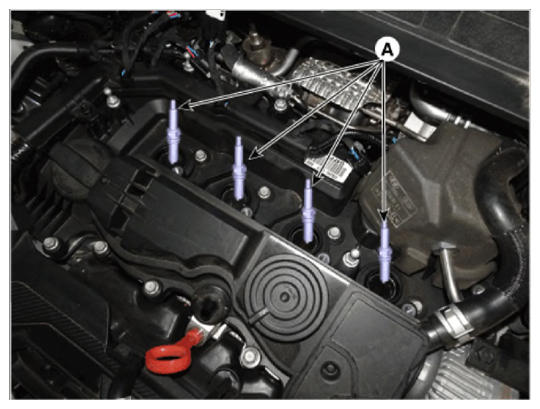

Using a spark plug wrench, remove the spark plugs (A).
Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 lb - ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful that no contaminates enter into spark plug holes.
