Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the variable force solenoid connector (A). Refer to illustrations below.
3. Remove the variable force solenoid from the engine after loosening mounting bolt (B).

Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

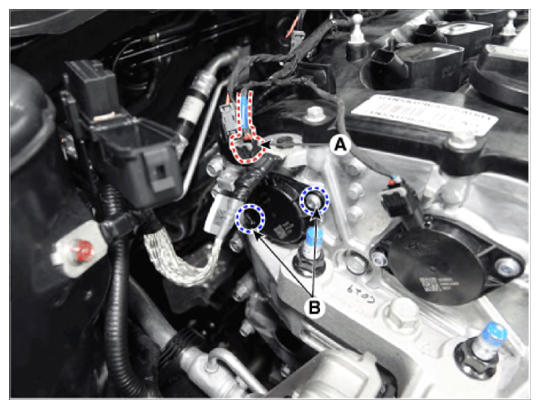

Variable force solenoid (VFS) [Bank 1/Intake]

Courtesy of HYUNDAI MOTOR AMERICA

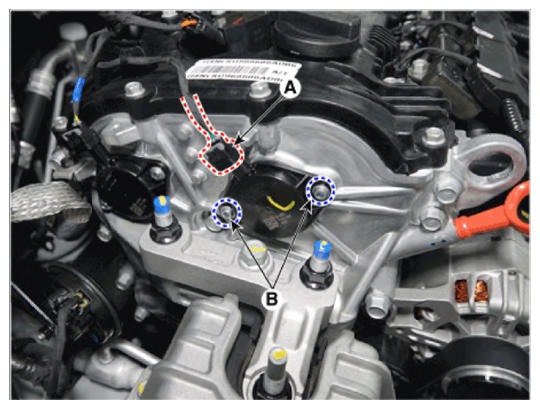

Variable force solenoid (VFS) [Bank 1/Exhaust]

Courtesy of HYUNDAI MOTOR AMERICA
