Repair Procedures: Removal

1. Remove the ignition coil.

   (Refer to Ignition System - "IGNITION COIL ")

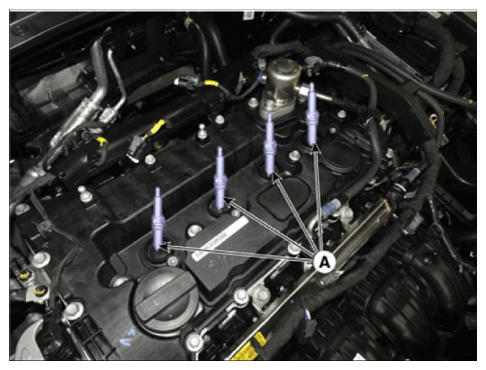

2. Using a spark plug wrench, remove the spark plugs (A).

Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
