Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

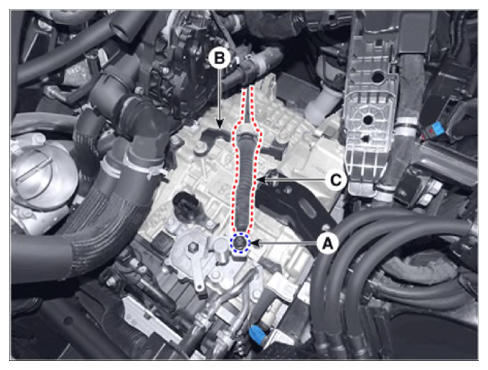

- Remove the shift cable (C) from the cable bracket (B), after loosening the mounting nut (A).

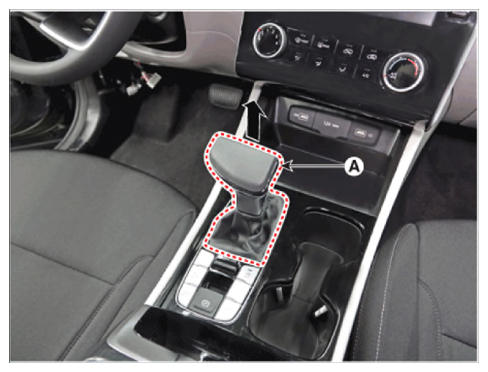

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

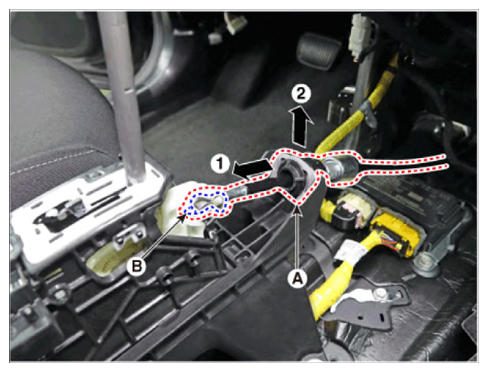

- Disconnect the shift cable (A) after removing the snap pin (B).

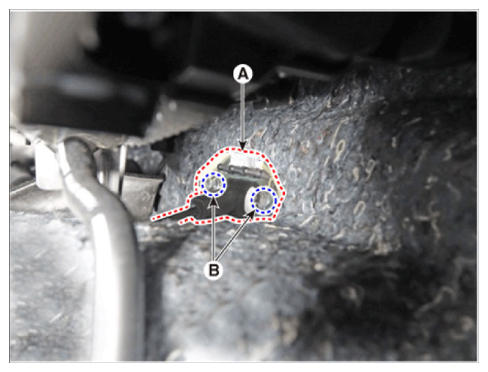

- Remove the retainer (A) by loosening the nuts (B-2ea).
- Remove the shift cable from the vehicle.
