Repair Procedures: Removal

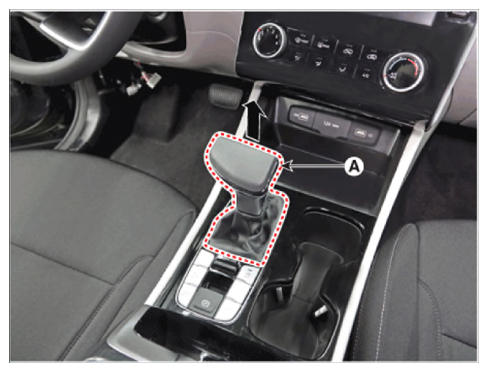

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

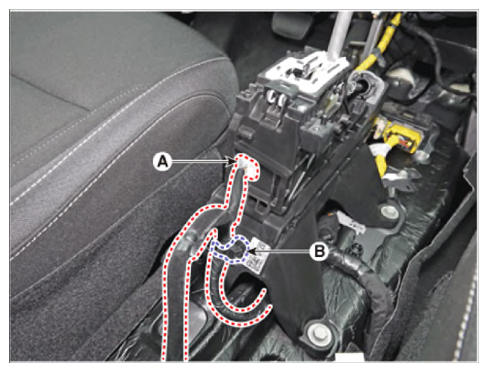

- Disconnect the shift lever connector (A) and wiring clip (B).

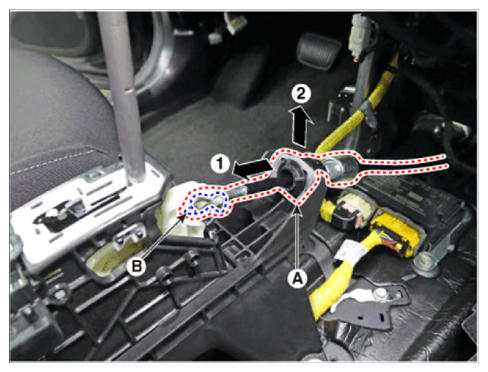

- Disconnect the shift cable (A) after removing the snap pin (B).

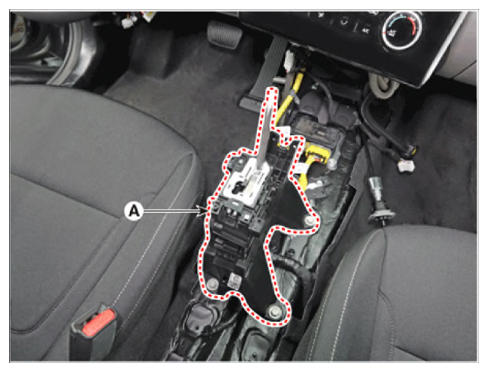

- Remove the shift lever assembly (A) after removing the bolts.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
