Repair Procedures: Removal
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.

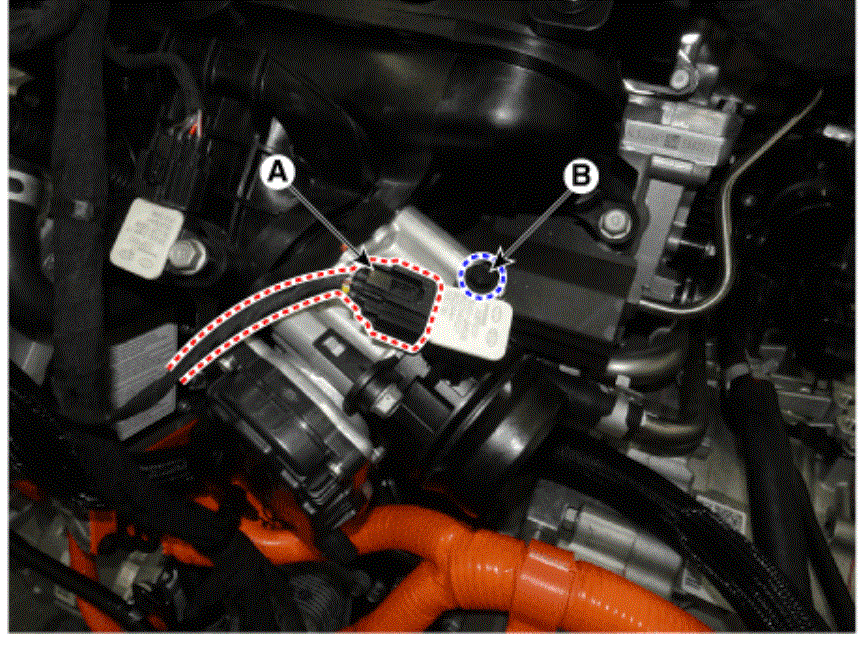

- Disconnect the boost pressure sensor (BPS) connector (A).
- Remove the sensor (B) after loosening the mounting bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
