Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) cable.

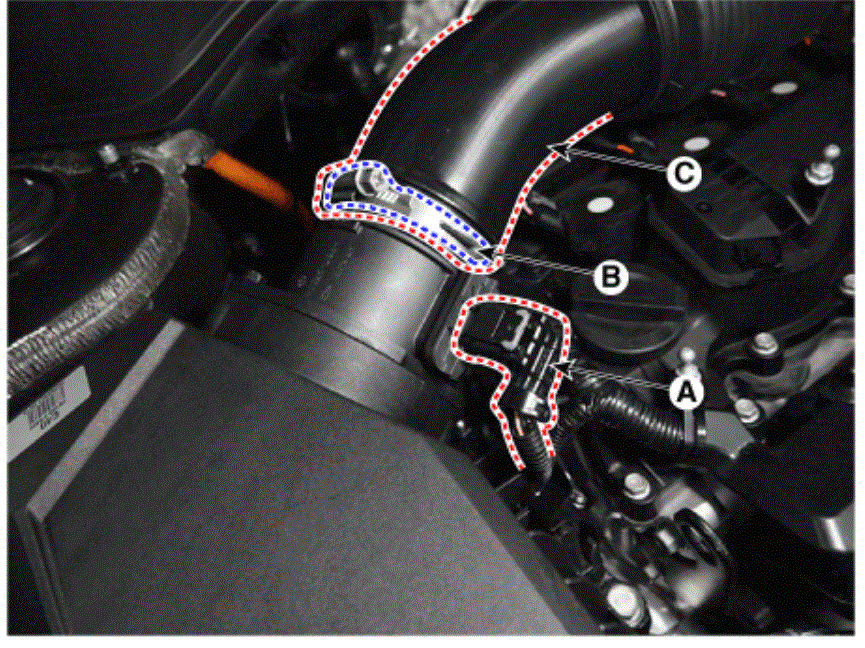

  2. Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
  3. Disconnect the air intake hose (C).
    G16146347Courtesy of HYUNDAI MOTOR AMERICA

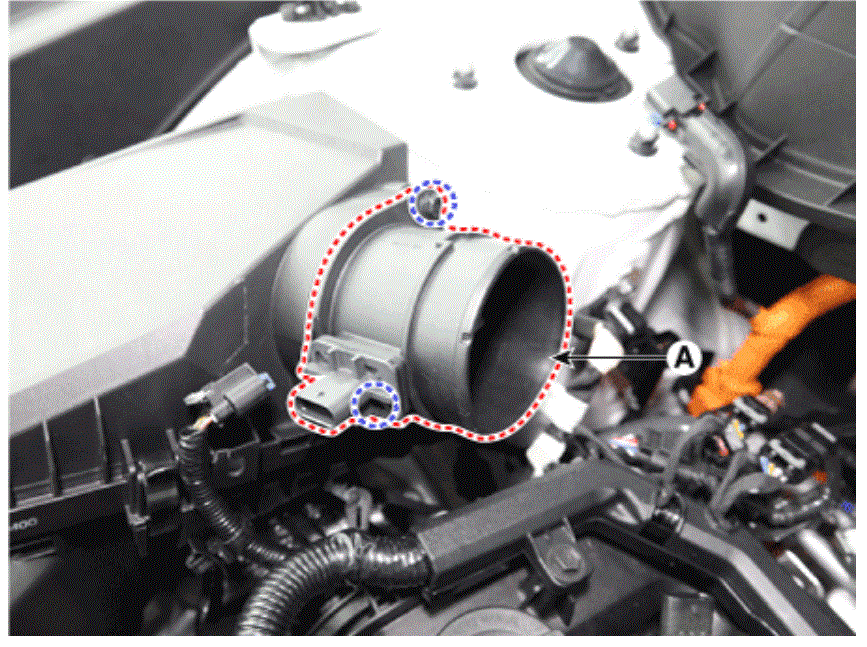

  4. Remove the mass air flow sensor (A) after loosening mounting bolt.

    Tightening Torque:

    5 - 7 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft)

G16146348Courtesy of HYUNDAI MOTOR AMERICA
