Components & Components Location: Components

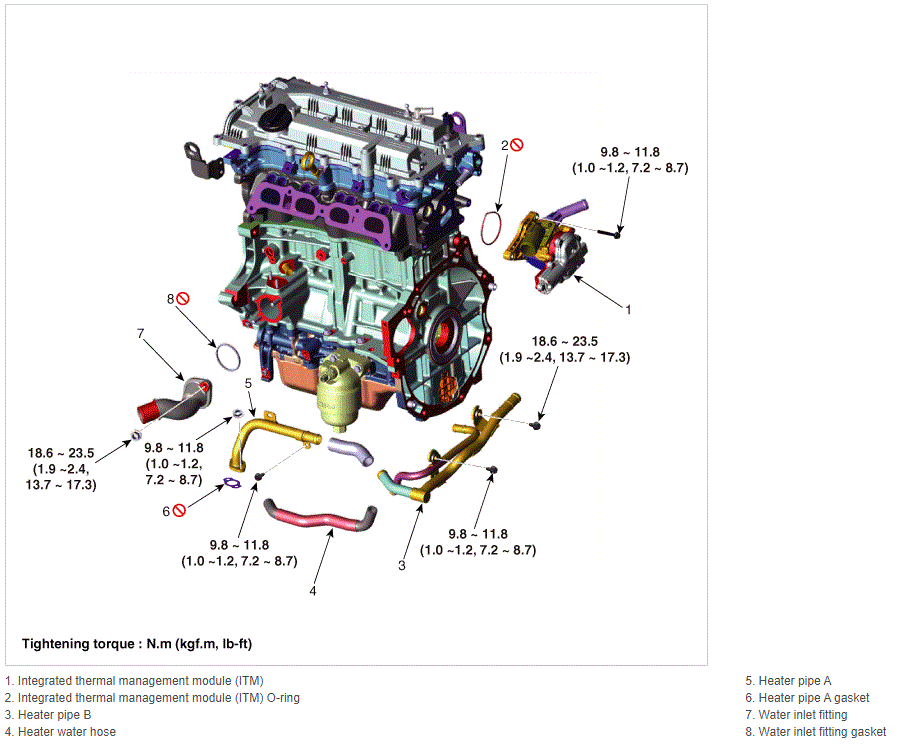

Fig 1: Thermal Management Module Motor Components Location With Torque Specification
G16146498Courtesy of HYUNDAI MOTOR AMERICA
