Repair Procedures: Installation
- To install, reverse the removal procedures.
- Perform the procedures related in the ECM after replacing the TCM.
(Refer to Engine Control/Fuel System - " ENGINE CONTROL MODULE (ECM) REPAIR PROCEDURES ")
- Perform the TCM adaptive values learning procedure.

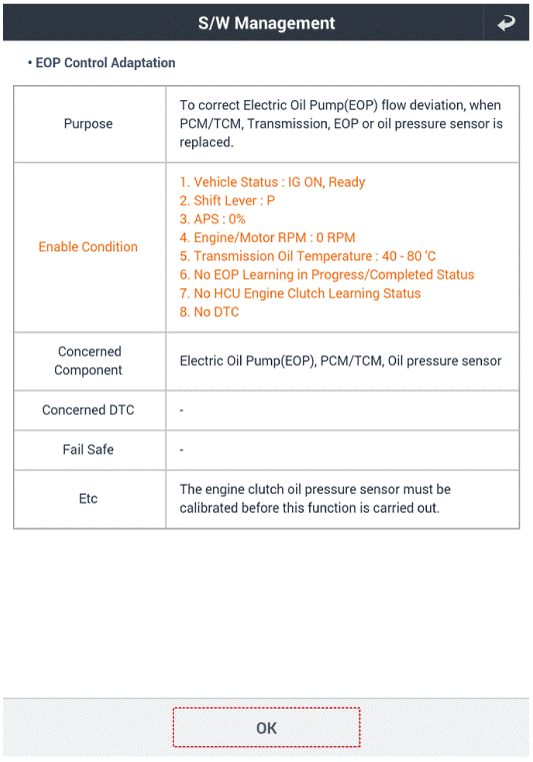

- Perform EOP oil flow deviation learning using the diagnostic tool
- Connect the VCI data cable to the self-diagnosis connector located at the lower section of the driver-side crash pad.
- Turn ON the engine and power up the VCI.

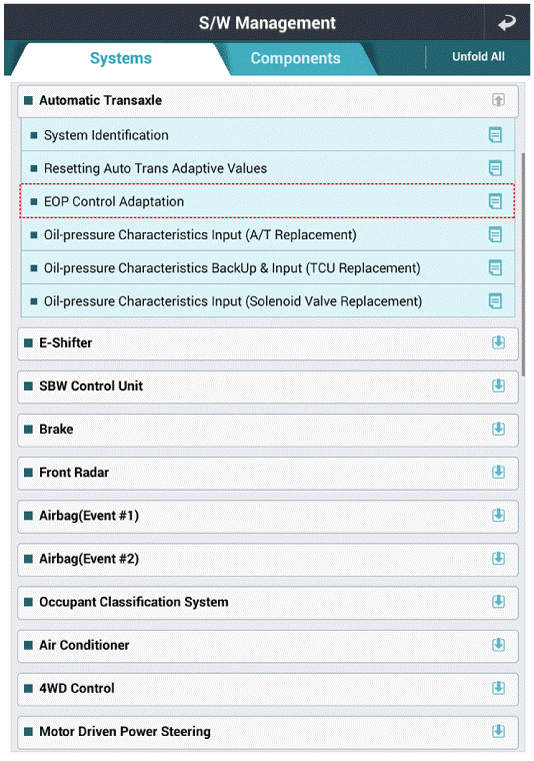

- Select the vehicle model from the diagnostic tool screen.

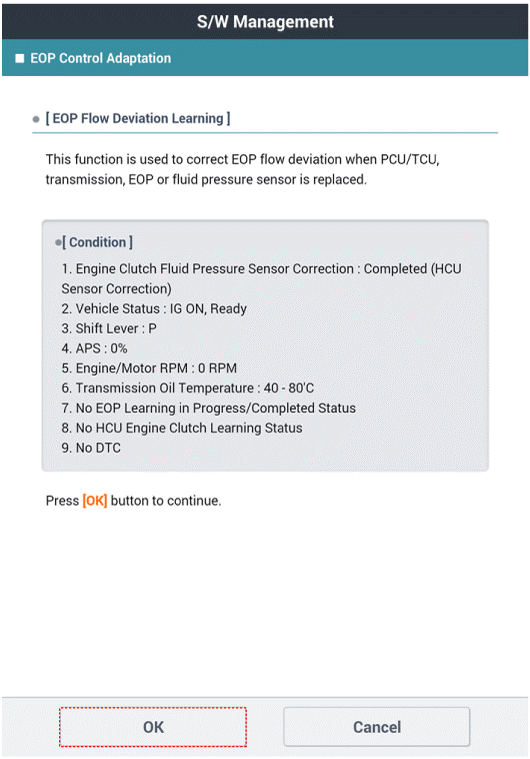

- Commence EOP flow deviation learning.
