Engine Control System Diagnosis (2 Of 6)
>>
DTC P013B-00: O2 Sensor Slow Response - Lean To Rich Bank 1 Sensor 2
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

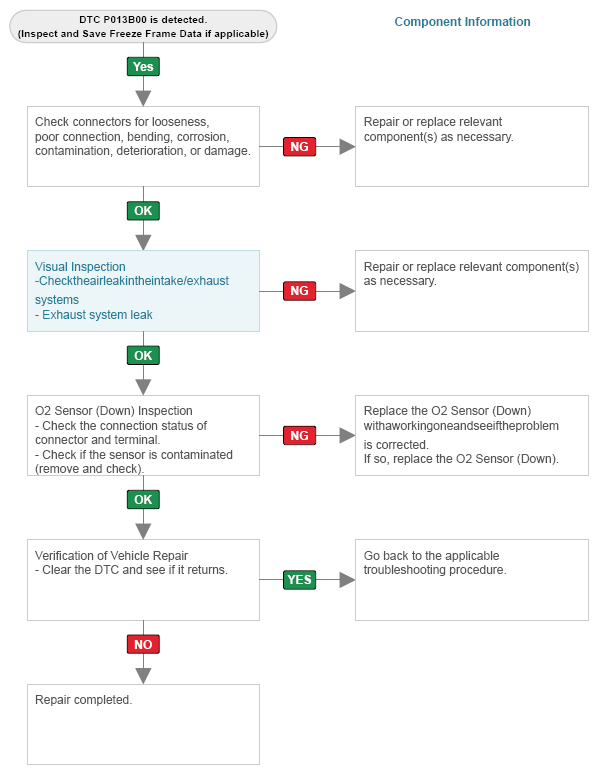

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
