Removal And Installation: Intake

  1. Disconnect the battery negative (-) terminal.
  2. Disconnect the Camshaft Position Sensor (CMPS) connector (A).
    G16545617Courtesy of HYUNDAI MOTOR AMERICA

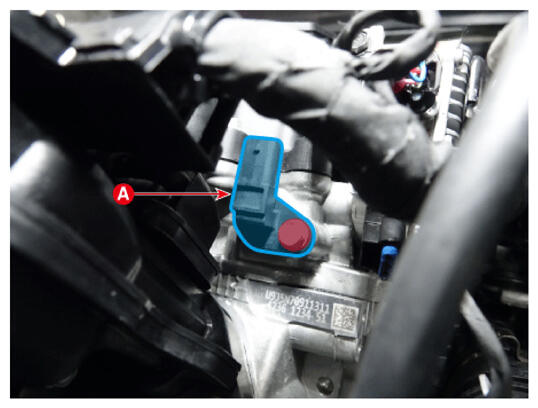

  3. Remove the Camshaft Position Sensor (CMPS) (A) after removing the bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

    G16545618Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
