Continuous Variable Valve Duration (CVVD) Actuator: Installation
- Install in the reverse order of removal.
NOTE:
- When installing the CVVD actuator: If the shaft gears do not fit properly, rotate the CVVD actuator in both directions before installing it. (Do not impact when installing the component.)

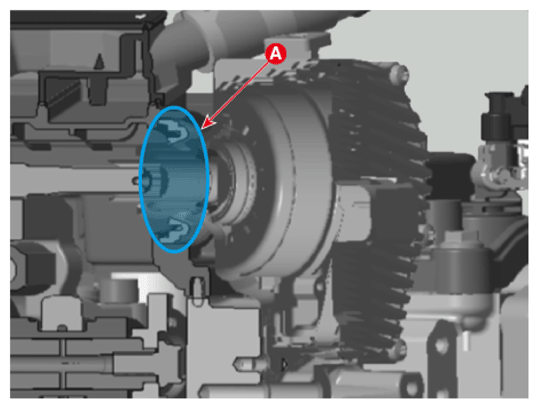

- Do not damage the component when installing the cylinder head cover oil seal (A).
- Install the CVVD actuator with the specified torque.
- If the CVVD actuator is dropped, it may cause internal damage. (Do not reuse)
