ECTS #1
- Disconnect the battery negative (-) terminal.
- Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")
- Remove the delivery pipe.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")
- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector.

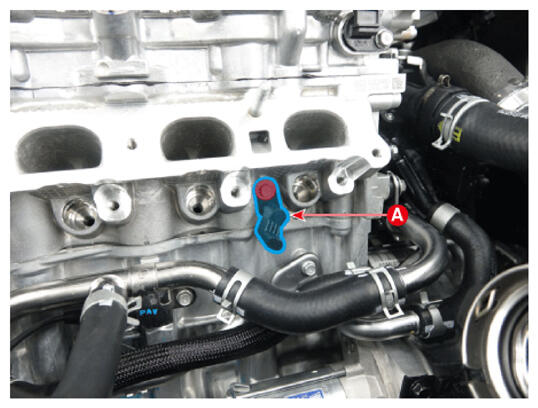

- Remove the Engine Coolant Temperature Sensor (ECTS) (A) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
