ECTS #2
- Disconnect the battery negative (-) terminal.
- Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")

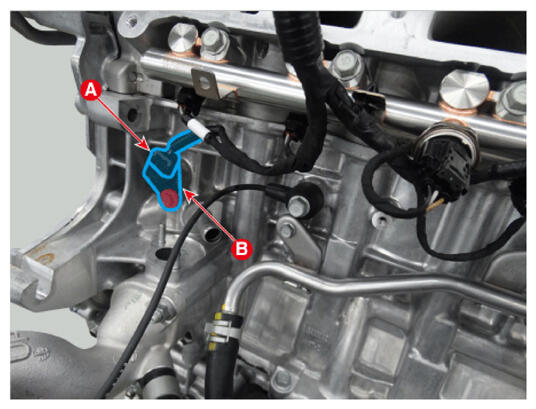

- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
- Remove the Engine Coolant Temperature Sensor (ECTS) (B) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
