Components Location: Front

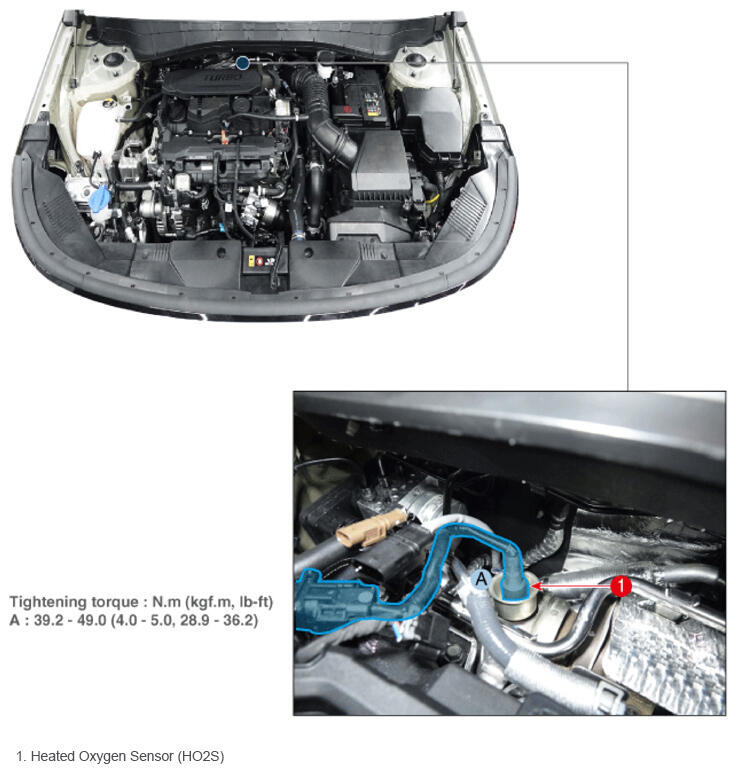

Fig 1: Heated Oxygen Sensor (HO2S) Components Location With Torque Specification (Front)
G16545628Courtesy of HYUNDAI MOTOR AMERICA
