Components Location: Rear

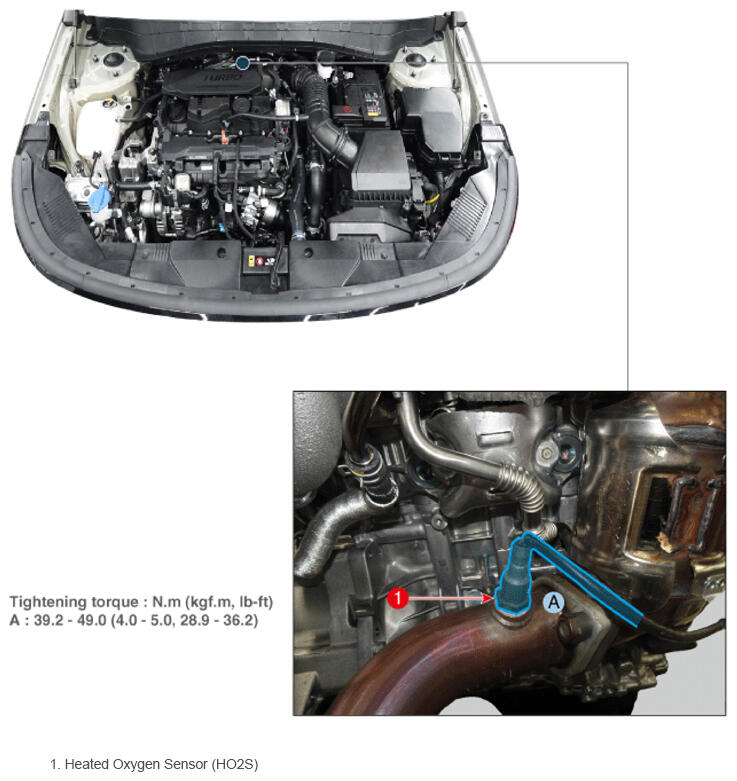

Fig 1: Heated Oxygen Sensor (HO2S) Components Location With Torque Specification (Rear)
G16545629Courtesy of HYUNDAI MOTOR AMERICA
