Removal And Installation

  1. Disconnect the battery negative (-) terminal.

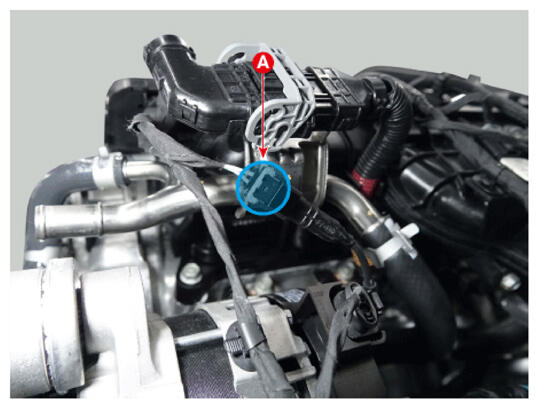

  2. Disconnect the Knock Sensor (KS) connector (A).
    G16545625Courtesy of HYUNDAI MOTOR AMERICA

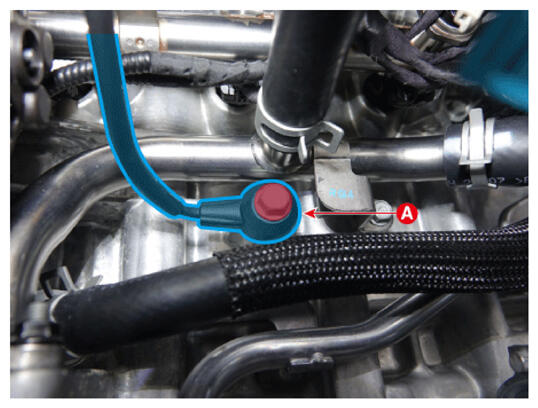

  3. Remove the Knock Sensor (KS) (A) after removing the bolt.

    Tightening torque:

    18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 Ib-ft)

    G16545626Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
