Position Switch: Removal
- Disconnect the battery negative (-) terminal.
- Make sure vehicle does not roll before setting shift lever to "N" position.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

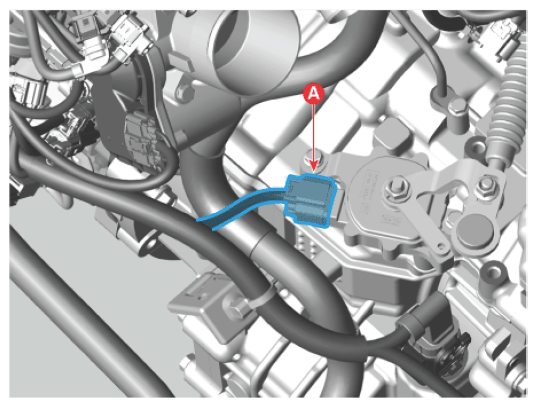

- Disconnect the Position switch connector (A).

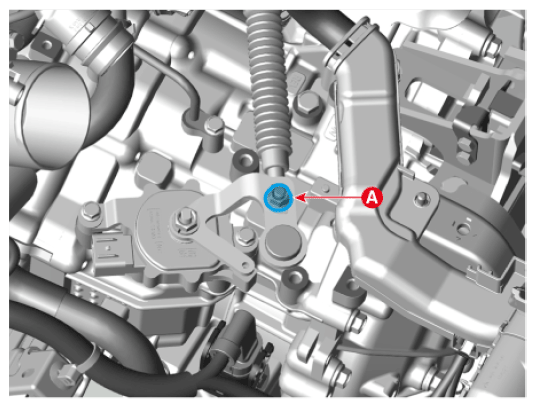

- Remove the shift cable nut (A).

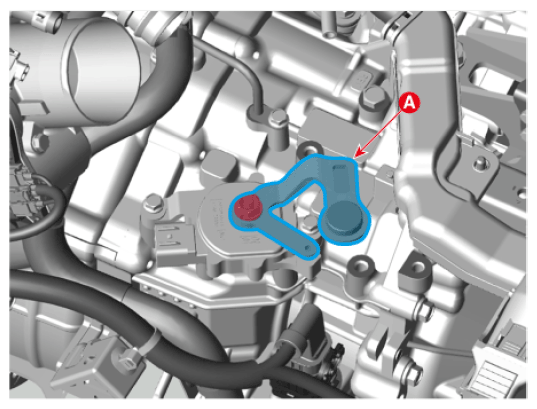

- Remove the manual control lever (A) after removing the nut.

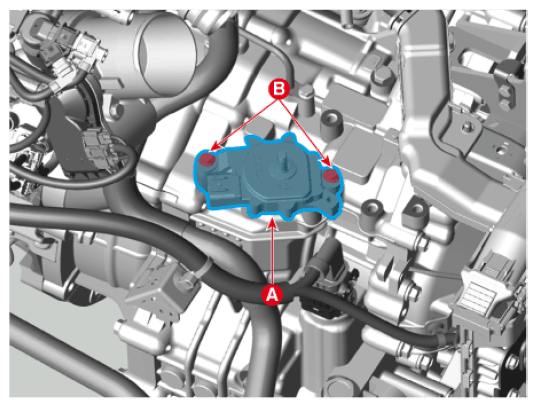

- Remove the Position switch (A) after removing the bolts (B).
