Transmission Control Module (TCM): Removal

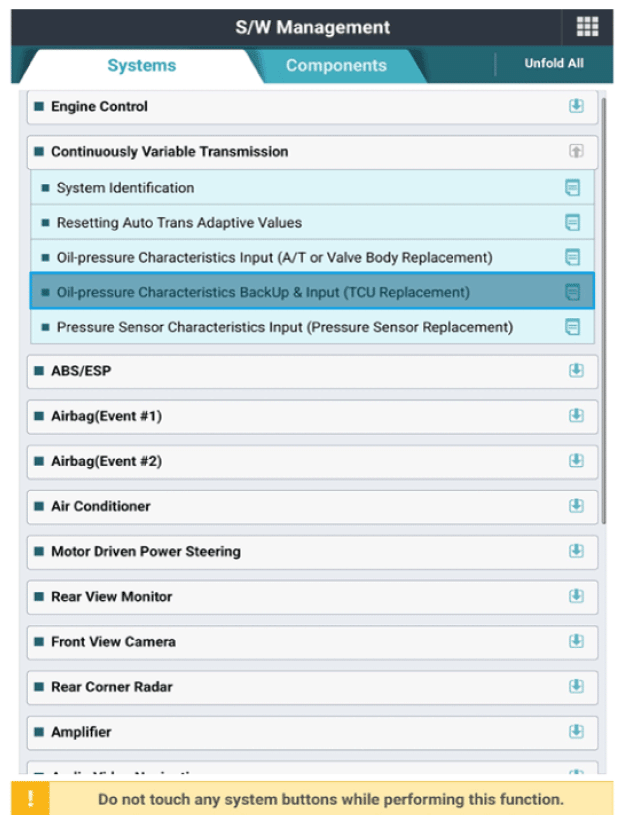

- Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
- Disconnect the negative (-) battery cable.

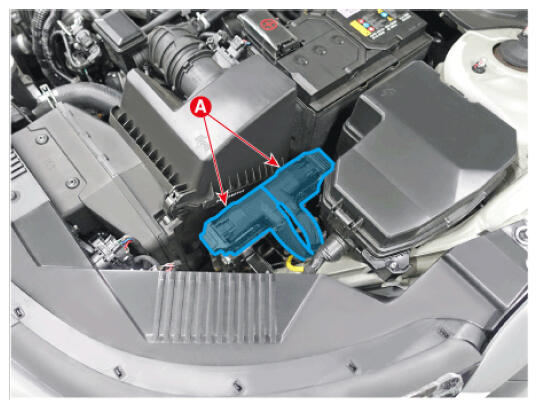

- Disconnect the TCM connectors (A).

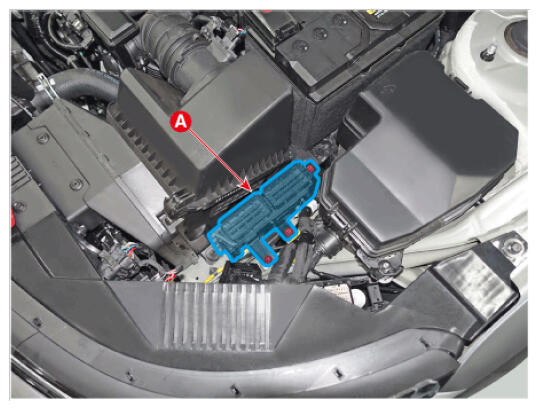

- Remove the TCM bracket assembly (A) after removing the bolts and nut.
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

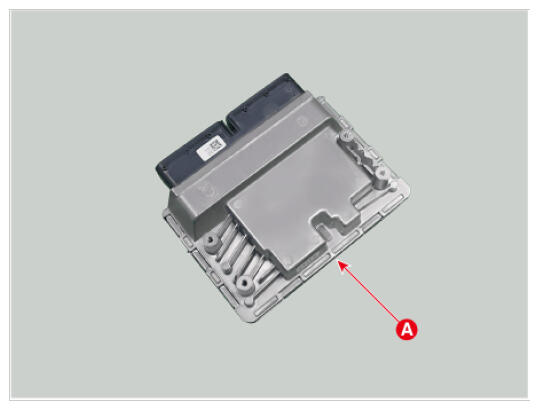

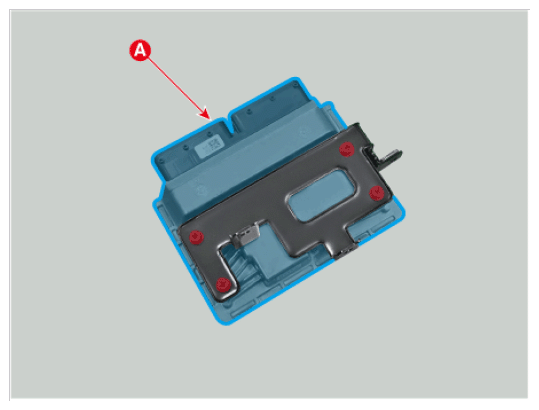

- Remove the TCM (A) from the bracket after removing the bolts
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
