Components Location

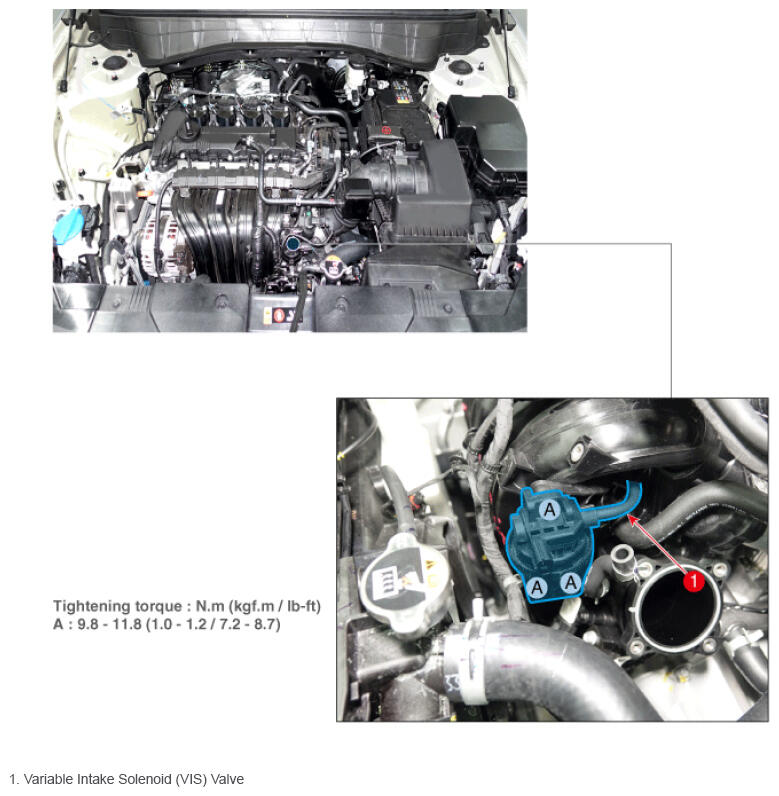

Fig 1: Variable Intake Solenoid Valve Components Location With Torque Specification
G16544823Courtesy of HYUNDAI MOTOR AMERICA
