Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

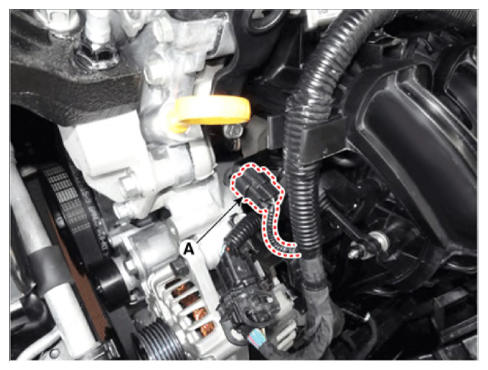

  2. Disconnect the VIS valve connector (A).
    G14774616Courtesy of HYUNDAI MOTOR AMERICA

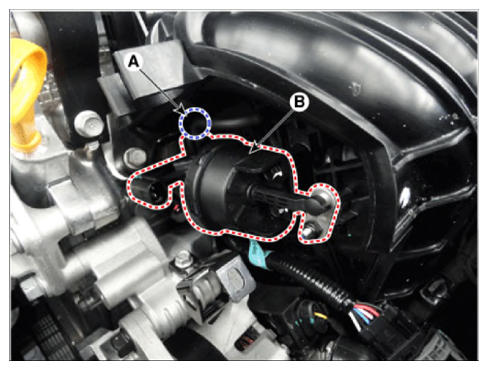

  3. Disconnect the hose (A) and then remove the VIS valve (B).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14774617Courtesy of HYUNDAI MOTOR AMERICA
