Repair Procedures: Installation

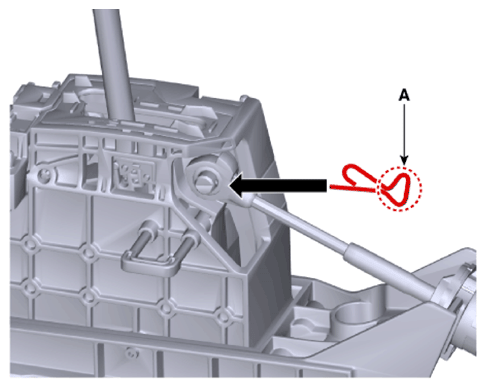

Install the shift cable (A) and then fix the snap pin (B).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

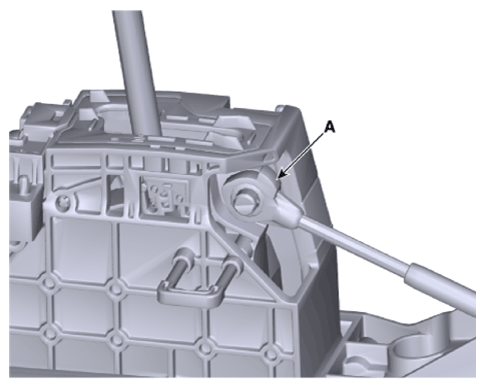

When assembling shift cable, the projection (A) must face upwards.

Courtesy of HYUNDAI MOTOR AMERICA

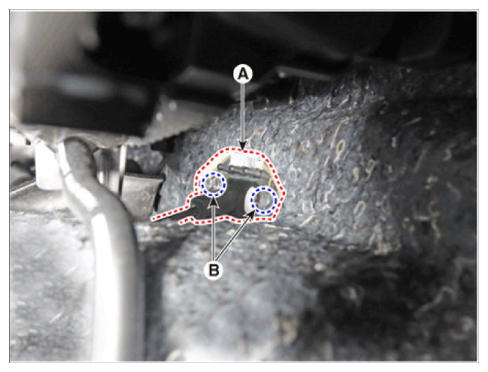

When assembling the snap pin, be careful about the correct direction.

Courtesy of HYUNDAI MOTOR AMERICA

(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

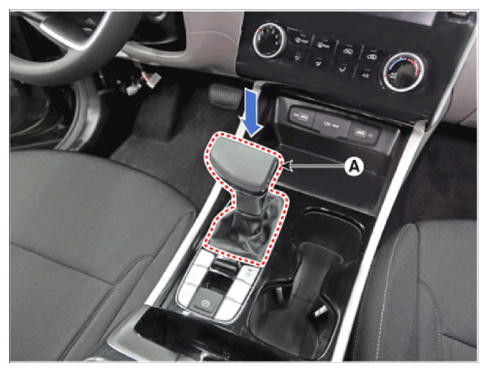

Install the shift lever knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA

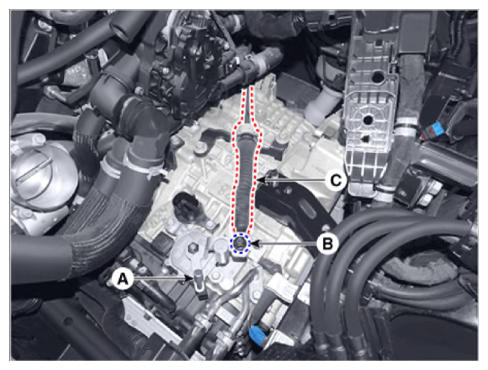

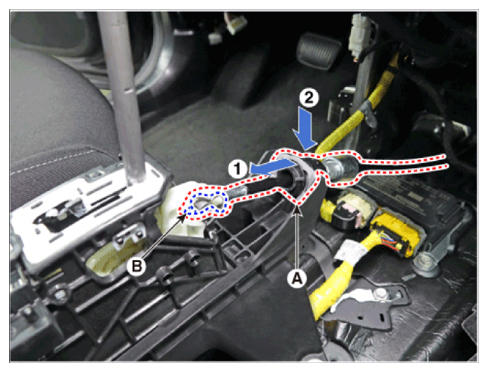

Install the shift cable (A) in the cable bracket (B).
Align the hole in the manual control lever with the "N" position hole of the position switch and then insert the position switch guide pin (SST No.:09480-A3800) (A).
Lightly tighten the nut (B) after install the shift cable (C) in the manual control lever.
Push shift cable (C) lightly to "F" direction shown to eliminate free play of shift cable.
Tighten the nut (B) with the specified torque.
Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the inhibitor switch guide pin (SST No.:09480-A3800) from the hole.
Install the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
