E-CVVT Motor
NOTE:
- Remove after 30 minutes of switching "OFF" the ignition to drain out the oil inside the E-CVVT motor plug.
- Remove the timing chain.
(Refer to Engine Mechanical System - "TIMING CHAIN ")

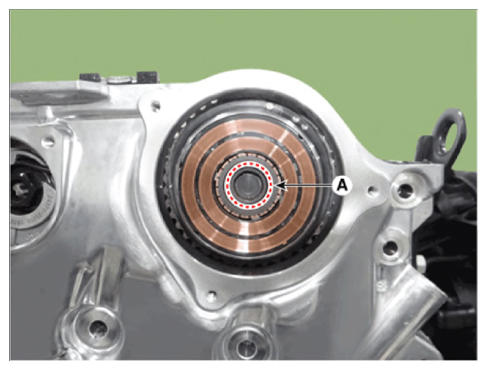

- Remove the center of the E-CVVT motor plug (A) by breaking it.NOTE:
- Do not tilt the front of engine (timing chain cover side) downward as residual oil may flow out during E-CVVT motor plug removal.
- If oil flows out during E-CVVT motor plug removal, wipe off immediately and block the motor shaft inlet with a clean towel.

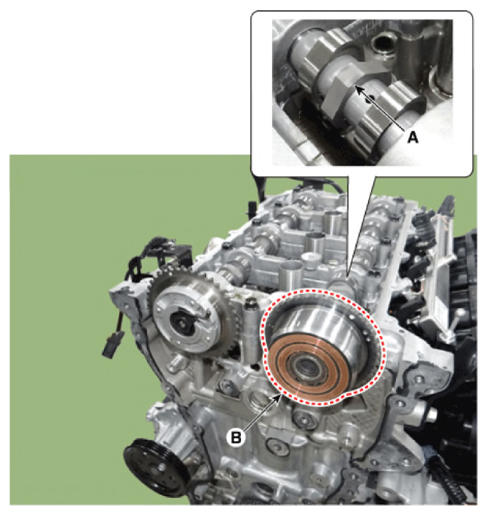

- Fix the camshaft part (A) using the wrench, and then remove the E-CVVT motor (B) after loosening the mounting bolt.
