Repair Procedures: Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.NOTE:

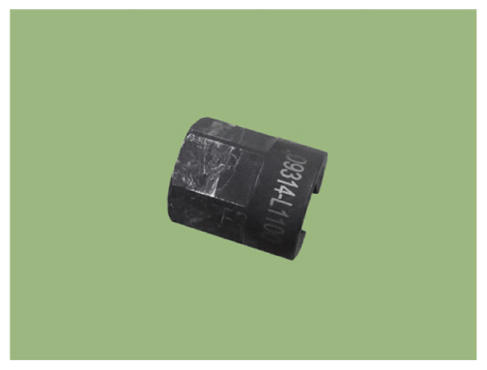

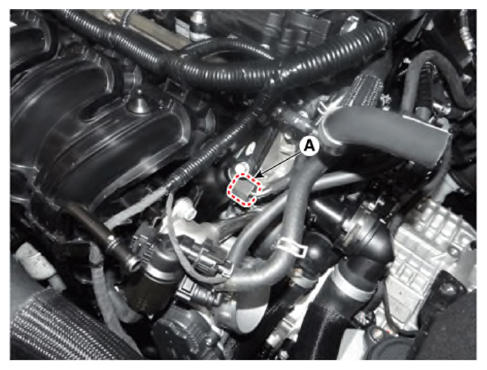

- When tightening the high pressure fuel pipe flange nut (A), using a SST (SST No.: 09314-L1100).

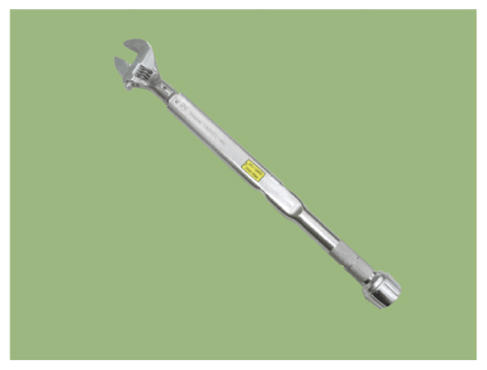

- Using a spanner torque wrench (27 mm).
- Do not reuse the high pressure fuel pipe.
- Note that do not deforming the high pressure fuel pipe.
- Install the component with the specified torques.
- Install the high pressure fuel pipe and then check the oil leakage.
- When Installing the high pressure fuel pipe, using a SST (SST No.: 09314-L1100).
- When reusing the injector refer to "[GDI Injector] " below.
- When tightening the high pressure fuel pipe flange nut (A), using a SST (SST No.: 09314-L1100).
