Continuous Variable Valve Duration (CVVD) Actuator: Removal
- Disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the high pressure fuel delivery pipe.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

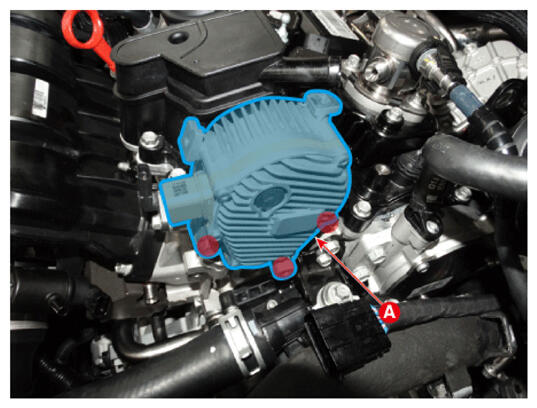

- Remove the Continuous Variable Valve Duration (CVVD) actuator (A) after removing the bolts.
Tightening torque:
18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 Ib-ft)
