Removal And Installation

Disconnect the battery negative (-) terminal.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

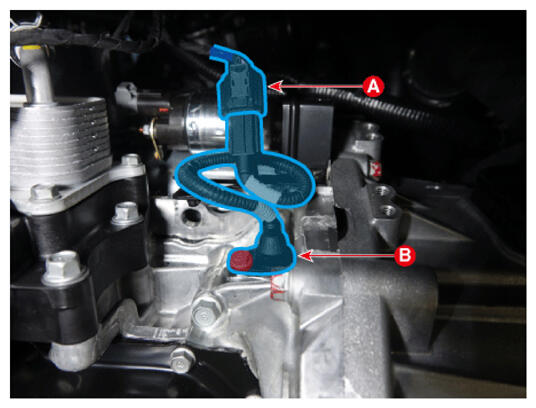

Disconnect the Crankshaft Position Sensor (CKPS) connector (A).
Remove the Crankshaft Position Sensor (CKPS) (B) after removing the bolt.
Tightening torque:

7.9 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
