Bank 1/Exhaust

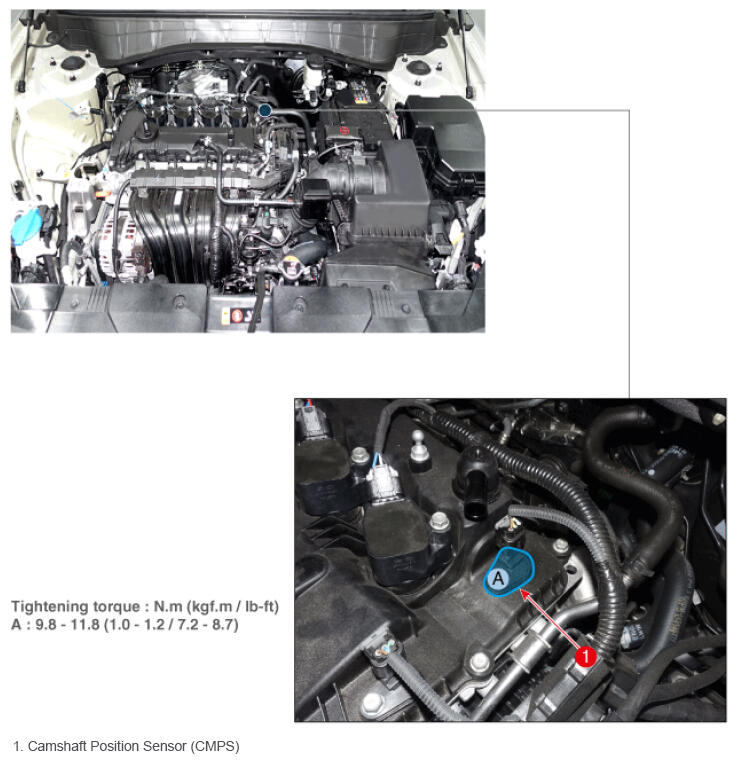

Fig 1: Camshaft Position Sensor Components Location With Torque Specification (Bank 1 / Exhaust)
G16108604Courtesy of HYUNDAI MOTOR AMERICA
