Bank 1/Intake

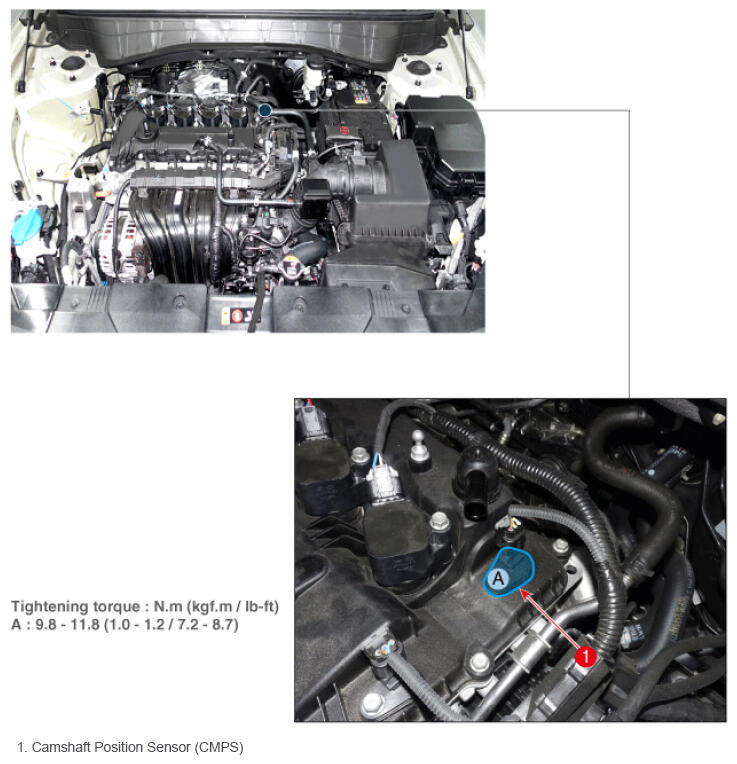

Fig 1: Camshaft Position Sensor Components Location With Torque Specification (Bank 1 / Intake)
G16544766Courtesy of HYUNDAI MOTOR AMERICA
