Removal And Installation

Disconnect the battery negative (-) terminal.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

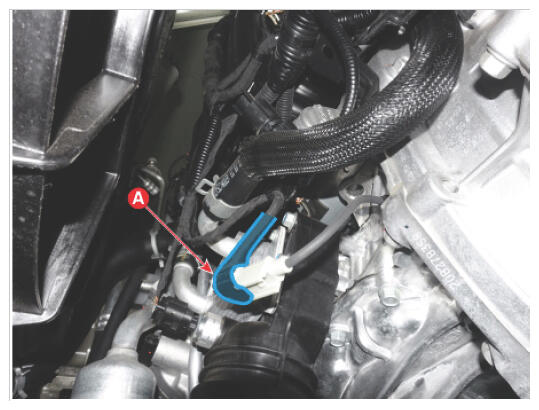

Disconnect the crankshaft position sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

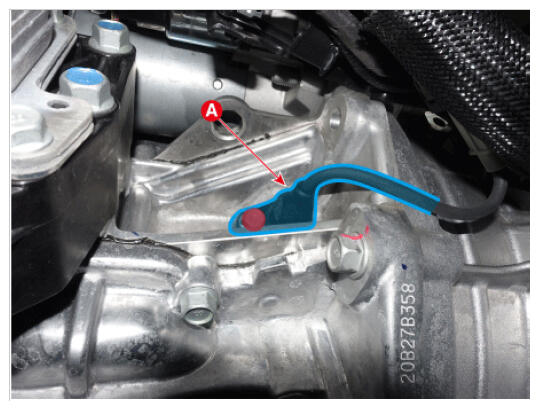

Remove the Crankshaft Position Sensor (CKPS) (A) after removing the bolt.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
