ECTS #2

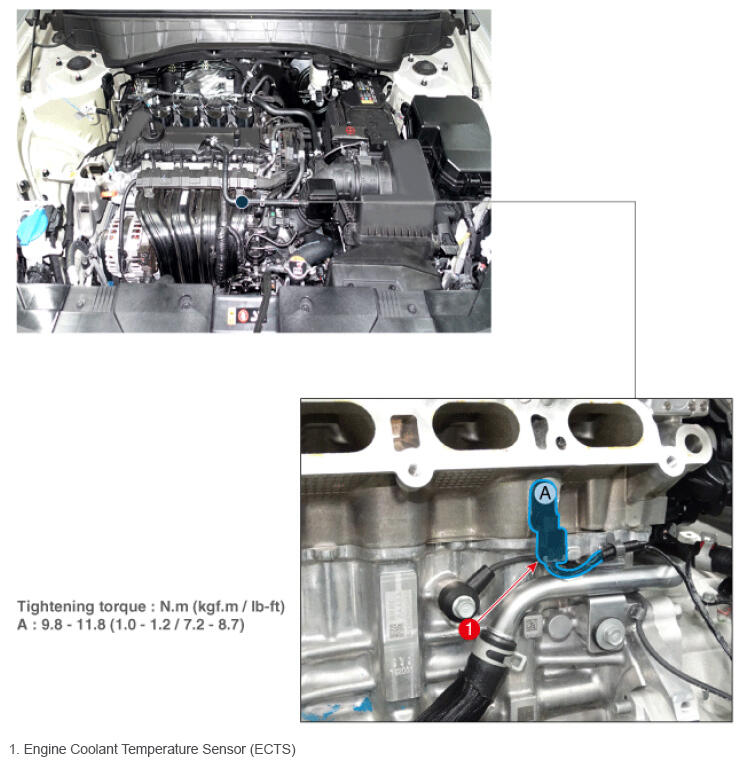

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification (ECTS #2)
G16544752Courtesy of HYUNDAI MOTOR AMERICA
